TM(Shenzhen Titan Micro Elec)

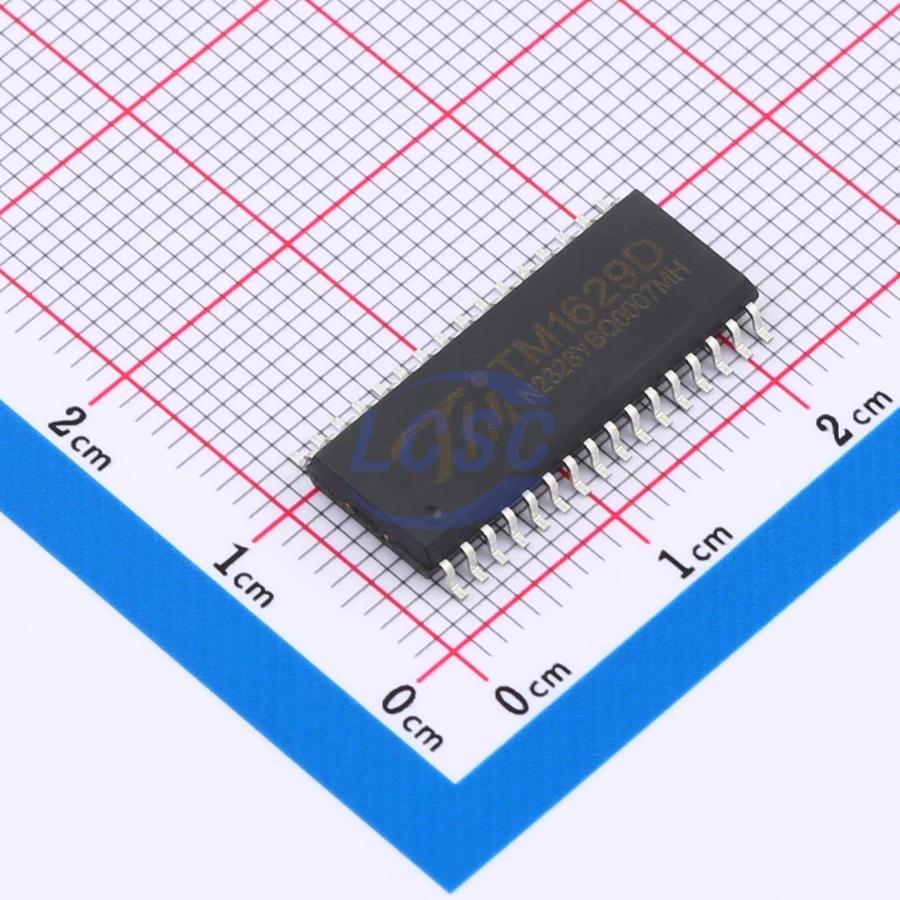

TM1629D(TA2009B)

3-Wire Serial Interface 4.5V~5.5V SOP-32 LED Drivers ICs

SOP-32RoHSActive

Special-purpose circuit for LED driver control

Manufacturer: TM(Shenzhen Titan Micro Elec)
Manufacturer part #: TM1629D(TA2009B)
Store part #: C20611983
Package / case: SOP-32
Category: LED Drivers ICs
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,122 in stock

#C20611983

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
11+	₹50.66	₹557.26
110+	₹38.98	₹4,287.80
330+	₹34.05	₹11,236.50
1,100+	₹27.69	₹30,459.00
5,280+	₹25.03	₹1,32,158.40
10,560+	₹23.18	₹2,44,780.80

Quantity (min 11, multiples of 11)

11 × ₹50.66

₹557.26

excl. GST

₹657.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 22 per tube

TM1629D(TA2009B)

₹557.26 for 11 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: PWM dimming;Internal reset function
Operating temperature: -20℃~+70℃
Interface: 3-Wire Serial Interface
Pd - Power Dissipation: 400mW
Voltage - Supply: 4.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tube-packed
Standard pack: 22 / Tube
Sold per: Piece
Minimum order: 11 (multiples of 11)
Unit weight: 1.159 g

Overview

TM1629D is a dedicated LED (Light Emitting Diode display) driver control IC with a keyboard scanning interface, integrating an MCU digital interface, data latches, LED high-voltage drivers, and keyboard scanning circuits. Primarily used for high-digit display panel driving in products such as refrigerators, air conditioners, and home theater systems.
