TM(Shenzhen Titan Micro Elec)

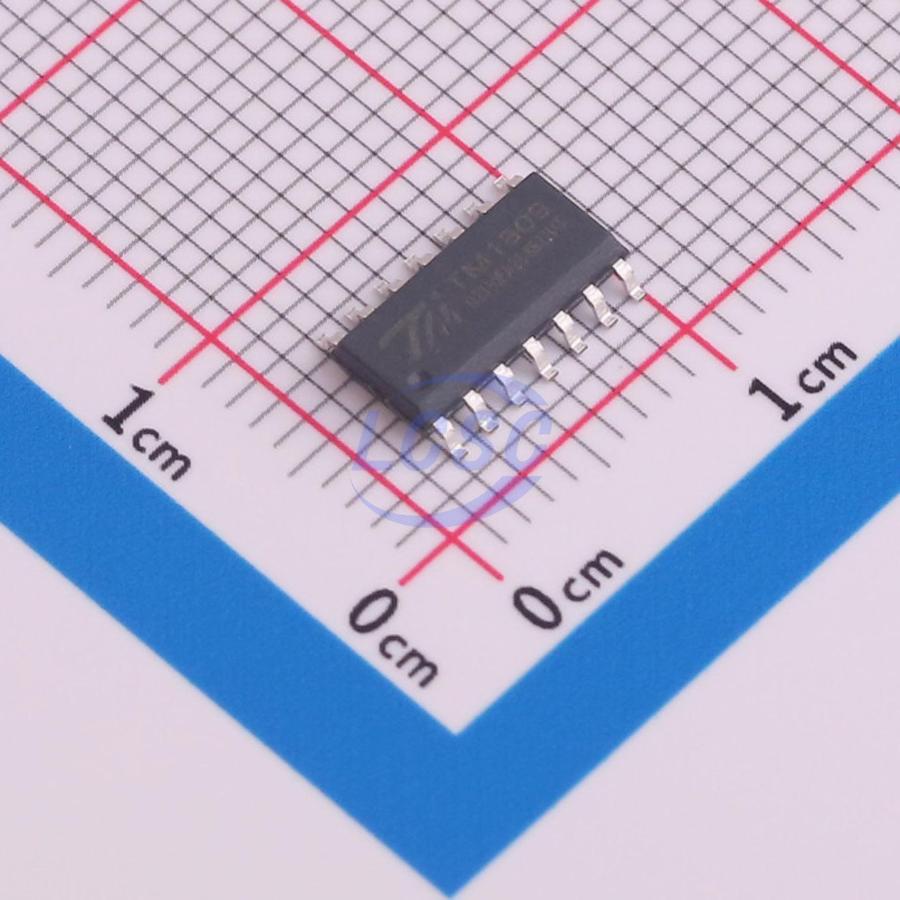

TM1809(TA1515)

LED Driver IC 9 Output PWM Dimming 60mA SOP-14

SOP-14RoHSSold out at source

Special circuit for 9-channel LED drive control

Manufacturer: TM(Shenzhen Titan Micro Elec)
Manufacturer part #: TM1809(TA1515)
Store part #: C20622180
Package / case: SOP-14
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,455 in stock

#C20622180

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹28.19	₹140.95
50+	₹21.68	₹1,084.00
150+	₹18.89	₹2,833.50
500+	₹15.41	₹7,705.00
2,500+	₹13.85	₹34,625.00
4,000+	₹12.93	₹51,720.00

Quantity (min 5, multiples of 5)

5 × ₹28.19

₹140.95

excl. GST

₹166.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

TM1809(TA1515)

₹140.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Frequency - Switching: 400kHz~800kHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Number of Channels: 9
Type: DC-DC
Output Current: 60mA
Voltage - Input(DC): 4.5V~6.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Sold out at source
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.243 g

Overview

TM1809 is a 9-channel LED driver control IC, integrating an MCU digital interface, data latches, and high-voltage LED driver circuits. Individual brightness control and cascade control of the chip are achieved via an external MCU, enabling color dot-matrix light control for outdoor large-screen displays. This product offers excellent performance and reliable quality.

Applications

Point light source
Guardrail tube
Flexible light strip
Indoor/outdoor large display screen

Key features

High-voltage power CMOS process
Output port voltage rating: 30V
VDD with integrated internal 5V Zener diode
External series resistor on VDD pin, supporting 6~24V input voltage
Brightness adjustment circuit, 256-level brightness control, equivalent to 1024 levels at low brightness
Single-wire serial cascade interface
Oscillation method: built-in RC oscillator with clock synchronization based on data line signals; after receiving data for the current unit, automatically reshapes subsequent data and transmits it to the next stage via data output — no signal distortion or attenuation over extended cascade distances
Built-in power-on reset circuit
V PWM control pin supports 256-level adjustment with scan frequency ≥400Hz
Data reception and decoding via single signal line
At 30 frames/s refresh rate: cascade count ≥540 points in low-speed mode and ≥1080 points in high-speed mode
Data transmission speed: 400Kbps or 800Kbps dual-mode
Package types: SOP14, DIP14
