TM(Shenzhen Titan Micro Elec)Datasheet (PDF)

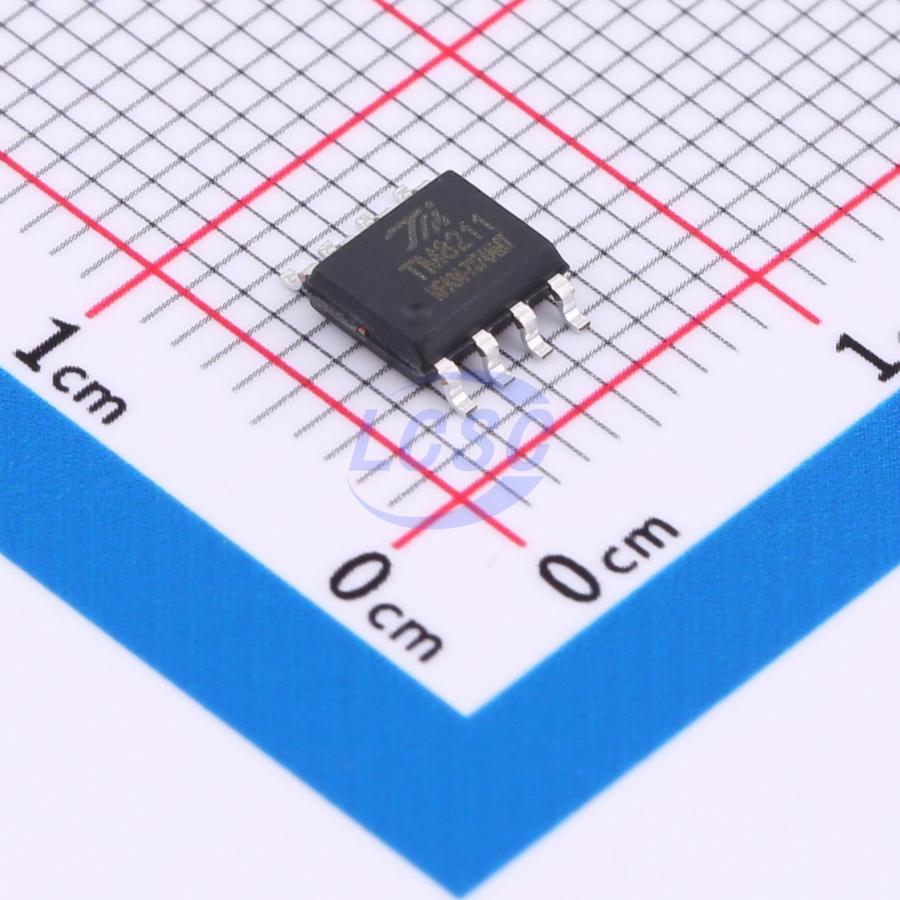

TM8211-TA2302
3V~6V Serial SOP-8 Digital to Analog Converters (DAC) RoHS
SOP-8ROHS CompliantActive
16-bit Digital-to-Analog Converter
- Manufacturer
- TM(Shenzhen Titan Micro Elec)
- Manufacturer part #
- TM8211-TA2302
- Store part #
- C22381766
- Package / case
- SOP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,110 in stock
#C22381766
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.80 | ₹84.00 |
| 50+ | ₹13.47 | ₹673.50 |
| 200+ | ₹11.80 | ₹2,360.00 |
| 500+ | ₹10.54 | ₹5,270.00 |
| 2,000+ | ₹9.55 | ₹19,100.00 |
| 5,000+ | ₹9.05 | ₹45,250.00 |
5 × ₹16.80
₹84.00
excl. GST
₹99.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per tube
TM8211-TA2302
₹84.00 for 5 + GST
Specifications
- Quiescent Current (Iq)
- 7mA
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 3V~6V
- Function
- Integrated buffer
- Resolution (Bits)
- 16;-
- Number of Channels
- 2
- Interface Type
- Serial
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
TM8211-TA2302 is a dual-channel 16-bit DAC IC widely applicable to digital audio and multimedia systems. The chip is designed using CMOS process technology, with an internal circuit architecture based on an R-2R resistor network, achieving 16-bit dynamic range across the full supply voltage range. The TM8211 accepts data via a digital serial bus and employs a high-speed R-2R network architecture to support 8X oversampling audio signal processing. The TM8211 supports a wide range of sampling frequencies, is compatible with PT8211 and TDA1311 chips, accepts input in LSBJ (Least Significant Bit Justified) format, and uses MSB-first two's complement digital encoding.
Applications
- Digital audio
- Multimedia systems
Key features
- CMOS technology
- 3.3V bus input level compatible
- Low power consumption
- Dual-channel output, single chip
- 16-bit dynamic range
- Zero phase shift between two output channels
- Package: SOP8
