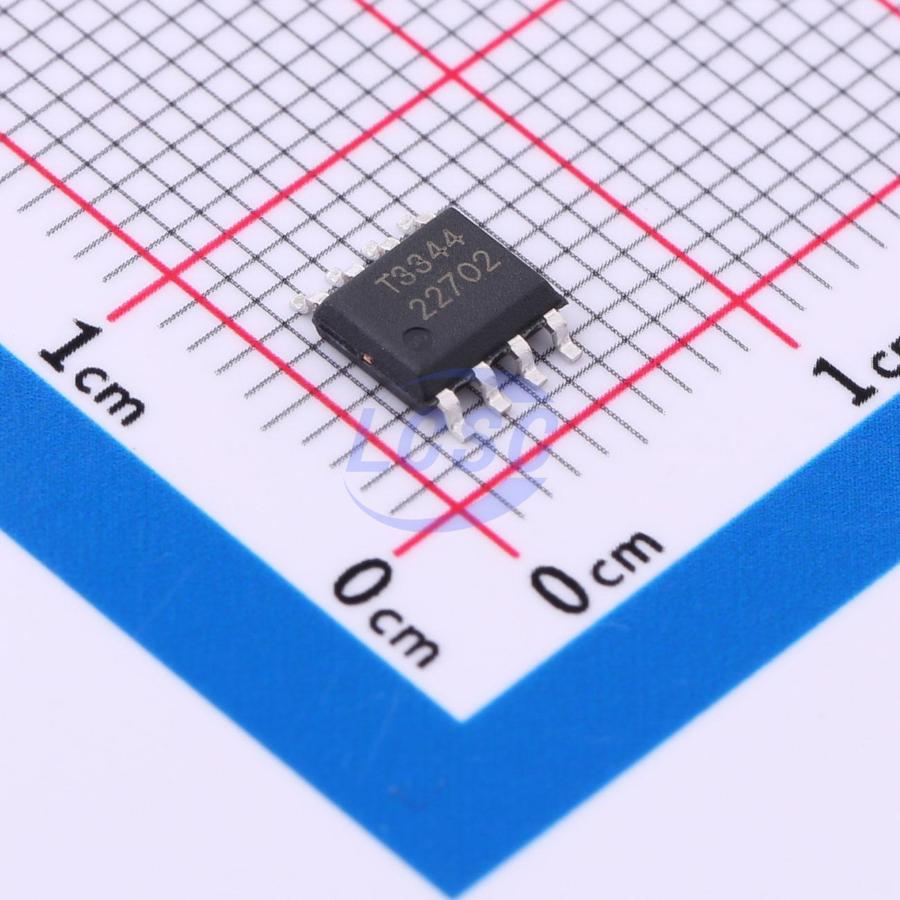

TMI3344
Step-down type 340kHz Adjustable 3A ESOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
ESOP-8ROHS CompliantActive
30V 3A Synchronous Step-Down DC/DC Converter
- Manufacturer
- TMI
- Manufacturer part #
- TMI3344
- Store part #
- C5259208
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,939 in stock
#C5259208
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹42.04 | ₹42.04 |
| 10+ | ₹33.37 | ₹333.70 |
| 30+ | ₹29.65 | ₹889.50 |
| 100+ | ₹25.00 | ₹2,500.00 |
| 500+ | ₹22.94 | ₹11,470.00 |
| 1,000+ | ₹21.70 | ₹21,700.00 |
1 × ₹42.04
₹42.04
excl. GST
₹49.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI3344
₹42.04 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Function
- Step-down type
- Frequency - Switching
- 340kHz
- Number of Outputs
- 1
- Features
- Adjustable soft-start;Cycle-by-cycle current limiting;Hiccup current limiting;External compensation;Light load efficient mode;Overcurrent Protection
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 4.5V~30V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 380uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
A wide input voltage of 4.5V to 30V, high efficiency current mode, synchronous step-down DC/DC converter capable of delivering 3A current with adjustable soft-start time. Integrates main switch and synchronous switch with low RDS(on) to minimize the conduction loss. The device integrates 120mΩ High-Side and 80mΩ Low-side Power MOS, and has advanced features include UVLO, Thermal Shutdown, Soft Start, input OVP.
Applications
- Smart Home Applications
- Vacuum Robot
- Printer
- Consumer Applications: TV and Set Top Box
- General 5V, 12V, 24V DC/DC Power Bus Supply
Key features
- High Efficiency: Up to 95%@12V to 5V
- Wide input voltage: 4.5V ~ 30V
- Up to 3A Output Current
- Low Typical 3μA Shutdown Current
- Adjustable Soft-Start Time
- Fixed 340kHz Switching Frequency
- Stable with Low ESR Ceramic Output
- Peak Current Mode with External Compensation
- PFM in Light Load Condition
- 0.925V Voltage Reference with ±2% Accuracy
- Thermal Shutdown
- Cycle-by-cycle Current Limit Protection
- Over Current Protection with Hiccup Mode
- ESOP8 Package
