TMI

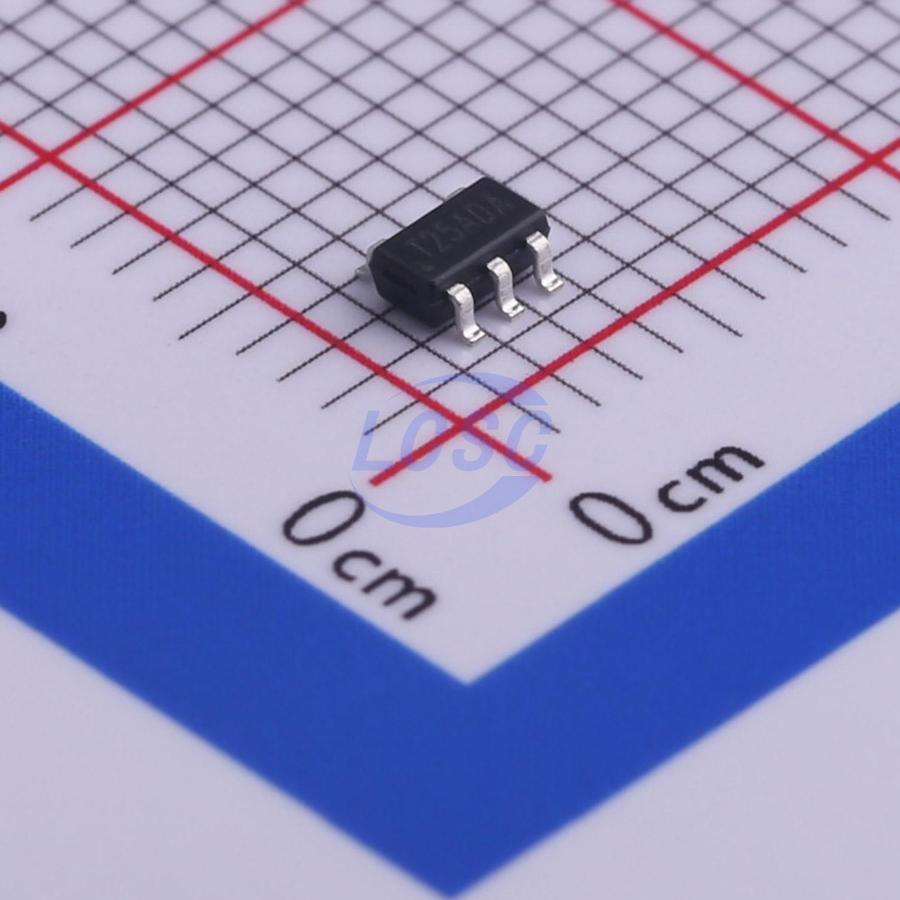

TMI3408

Step-down type 1.5MHz Adjustable 600mV~5.5V 1.2A SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-5ROHS CompliantActive

1.5MHz, 1.2A Synchronous Step-Down Converter

Manufacturer: TMI
Manufacturer part #: TMI3408
Store part #: C478951
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

35,025 in stock

#C478951

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
3+	₹5.73	₹17.19
30+	₹4.58	₹137.40
90+	₹4.00	₹360.00
300+	₹3.56	₹1,068.00
1,500+	₹3.21	₹4,815.00
3,000+	₹3.04	₹9,120.00

Quantity (min 3, multiples of 3)

3 × ₹5.73

₹17.19

excl. GST

₹20.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TMI3408

₹17.19 for 3 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Function: Step-down type
Frequency - Switching: 1.5MHz
Number of Outputs: 1
Features: Overcurrent Protection;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~5.5V
Output Current: 1.2A
Quiescent Current: 40uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 3 (multiples of 3)
Unit weight: 0.023 g

Overview

The TMI3408 are 1.5MHz constant frequency, current mode step-down converters. The devices integrate a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. It is ideal for powering portable equipment that runs from a single cell Lithium-Ion (L|+) battery. The output voltage can be regulated as low as 0.6V. The TMI3408 can also run at 100% duty cycle for low dropout operation, extending battery life in portable system. The devices offer two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load.

Applications

Cellular and Smart Phones
Wireless and DSL Modems
PDA/MID/PAD
Digital Still and Video Cameras

Key features

High Efficiency: Up to 96%(@3.3V)
1.5MHz Constant Frequency Operation
1.2A Output Current
No Schottky Diode Required
2.5V to 5.5V Input Voltage Range
Output Voltage as Low as 0.6V
100% Duty Cycle in Dropout
Low Quiescent Current: 40μA
Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
Soft Start time for 1ms
Short Circuit Protection with Frequency reduction mode
Thermal Fault Protection
Inrush Current Limit and Soft Start
Input over voltage protection (OVP)
<1μA Shutdown Current
Available SOT23-5 and DFN2x2-6 Packages
