VISHAYDatasheet (PDF)

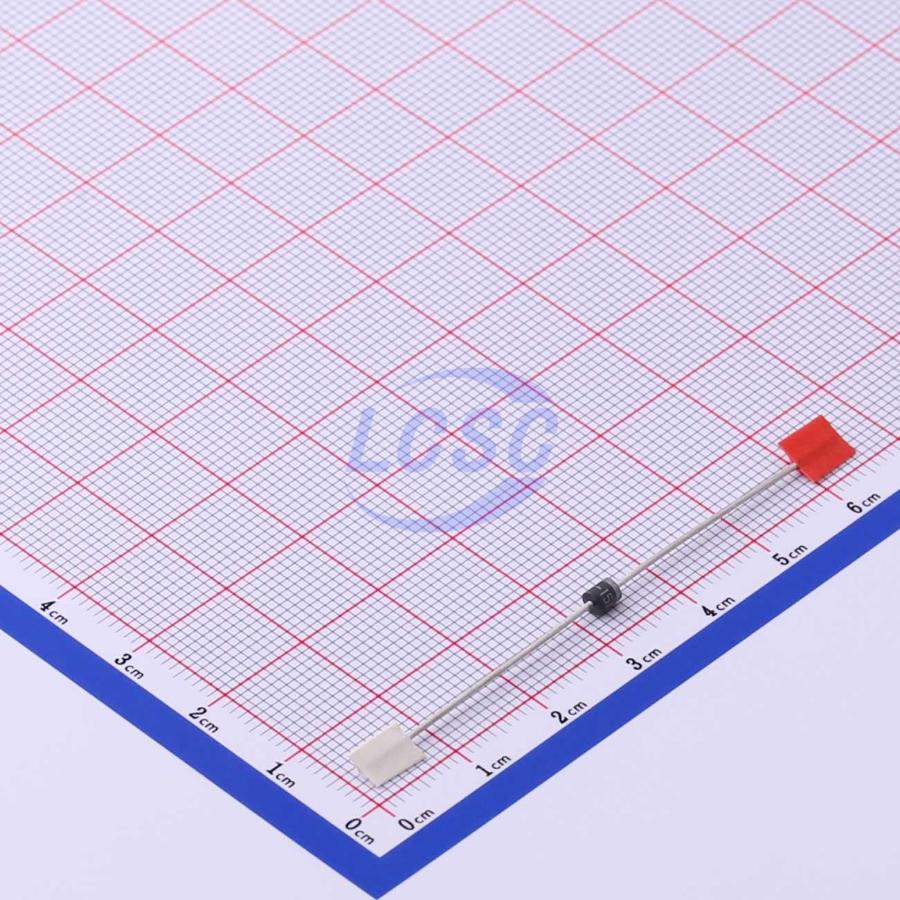

TMPG06-15AHE3_A/C
21.2VC Clamp 18.9A@10/1000us Ipp TVS DIODE MPG06
MPG06ROHS3 CompliantActive
TVS DIODE 12.8VWM 21.2VC MPG06
- Manufacturer
- VISHAY
- Manufacturer part #
- TMPG06-15AHE3_A/C
- Store part #
- C511578
- Package / case
- MPG06
- Category
- TVS Diodes
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C511578
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.21 | ₹97.21 |
| 10+ | ₹95.22 | ₹952.20 |
| 30+ | ₹94.01 | ₹2,820.30 |
| 100+ | ₹92.62 | ₹9,262.00 |
1 × ₹97.21
₹97.21
excl. GST
₹114.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,500 per box
TMPG06-15AHE3_A/C
₹97.21 for 1 + GST
Specifications
- Clamping Voltage
- 21.2V
- Operating Temperature
- -65℃~+185℃
- Peak Pulse Current (Ipp)
- 18.9A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 14.3V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 12.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 5,500 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.233 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Key features
- Available in uni- directional polarity only
- 400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01%
- Excellent clamping capability
- Very fast response time
- Low incremental resistance
- Solder dip 275 ℃ max. 10 s, per JESD 22- B106
- AEC- Q101 qualified
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
