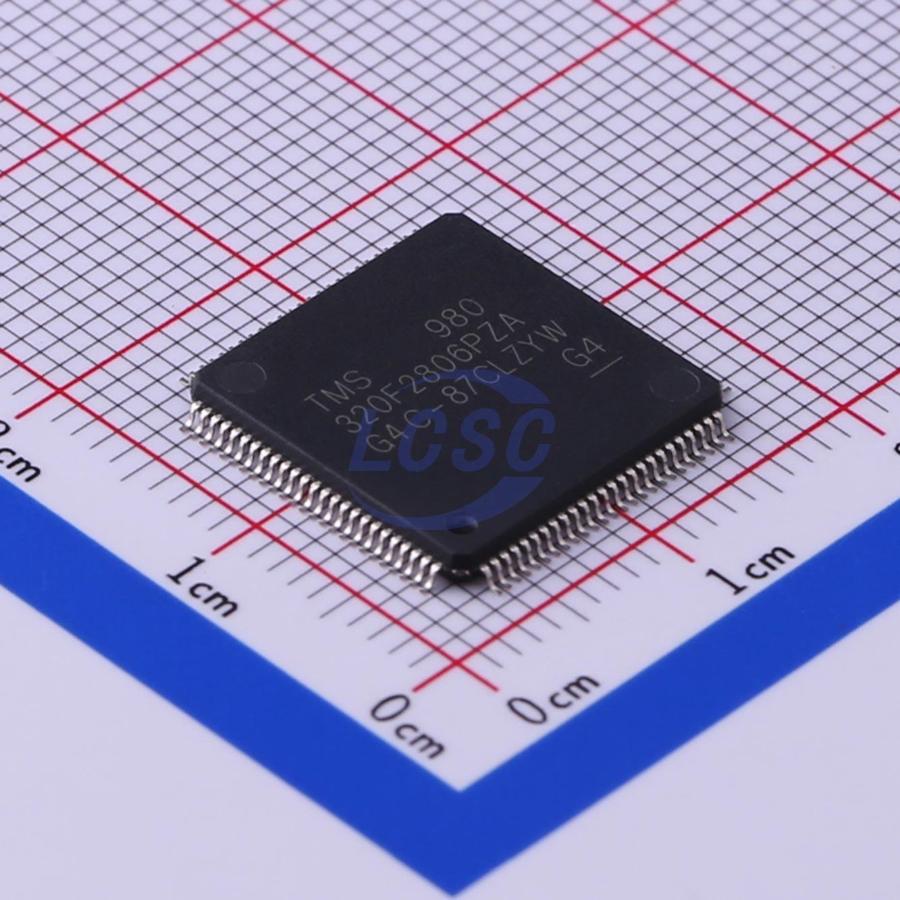

TMS320F2806PZA

The TMS320F2809, TMS320F2808, TMS320F2806, TMS320F2802, TMS320F2801, TMS320F28015, TMS320F28016, TMS320C2802, and TMS320C2801 devices, members of the TMS320C28x DSP generation, are highly integrated, high-performance solutions for demanding control applications.

Applications

• Motor drive and control
• Digital power

Key features

• High-performance static CMOS technology – 100 MHz (10-ns cycle time) – 60 MHz (16.67-ns cycle time) – Low-power (1.8-V core, 3.3-V I/O) design
• JTAG boundary scan support – IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture
• High-performance 32-bit CPU (TMS320C28x) – 16×16 and 32×32 MAC operations – 16×16 dual MAC – Harvard bus architecture – Atomic operations – Fast interrupt response and processing – Unified memory programming model – Code-efficient (in C/C++) and Assembly
• On-chip memory – F2809: 128K×16 flash, 18K×16 SARAM F2808: 64K×16 flash, 18K×16 SARAM F2806: 32K×16 flash, 10K×16 SARAM F2802: 32K×16 flash, 6K×16 SARAM F2801: 16K×16 flash, 6K×16 SARAM F2801x: 16K×16 flash, 6K×16 SARAM – 1K×16 OTP ROM (flash devices only) – C2802: 32K × 16 ROM, 6K×16 SARAM C2801: 16K × 16 ROM, 6K×16 SARAM
• Boot ROM (4K×16) – With software boot modes (via SCI, SPI, CAN, I2C, and parallel I/O) – Standard math tables
• Clock and system control – On-chip oscillator – Watchdog timer module
• Any GPIO A pin can be connected to one of the three external core interrupts
• Peripheral Interrupt Expansion (PIE) block that supports all 43 peripheral interrupts
• Endianness: Little endian
• 128-bit security key/lock – Protects flash/OTP/L0/L1 blocks – Prevents firmware reverse-engineering
• Three 32-bit CPU timers
• Enhanced control peripherals – Up to 16 PWM outputs – Up to 6 HRPWM outputs with 150-ps MEP resolution – Up to four capture inputs – Up to two quadrature encoder interfaces – Up to six 32-bit/six 16-bit timers
• Serial port peripherals – Up to 4 SPI modules – Up to 2 SCI (UART) modules – Up to 2 CAN modules – One Inter-Integrated-Circuit (I2C) bus
• 12-bit ADC, 16 channels – 2×8 channel input multiplexer – Two sample-and-hold – Single/simultaneous conversions – Fast conversion rate: 80 ns - 12.5 MSPS (F2809 only) 160 ns - 6.25 MSPS (280x) 267 ns - 3.75 MSPS (F2801x) – Internal or external reference
• Up to 35 individually programmable, multiplexed GPIO pins with input filtering
• Advanced emulation features – Analysis and breakpoint functions – Real-time debug via hardware
• Development support includes – ANSI C/C++ compiler/assembler/linker – Code Composer Studio IDE – SYS/BIOS Digital motor control and digital power software libraries
• Low-power modes and power savings – IDLE, STANDBY, HALT modes supported – Disable individual peripheral clocks
• Package options – Thin quad flatpack (PZ) – MicroStar BGA (GGM, ZGM)
• Temperature options – A: -40℃ to 85℃ (PZ, GGM, ZGM) – S: -40℃ to 125℃ (PZ, GGM, ZGM) – Q: -40℃ to 125℃ (PZ) (AEC-Q100 qualification for automotive applications)
