MICROCHIPDatasheet (PDF)

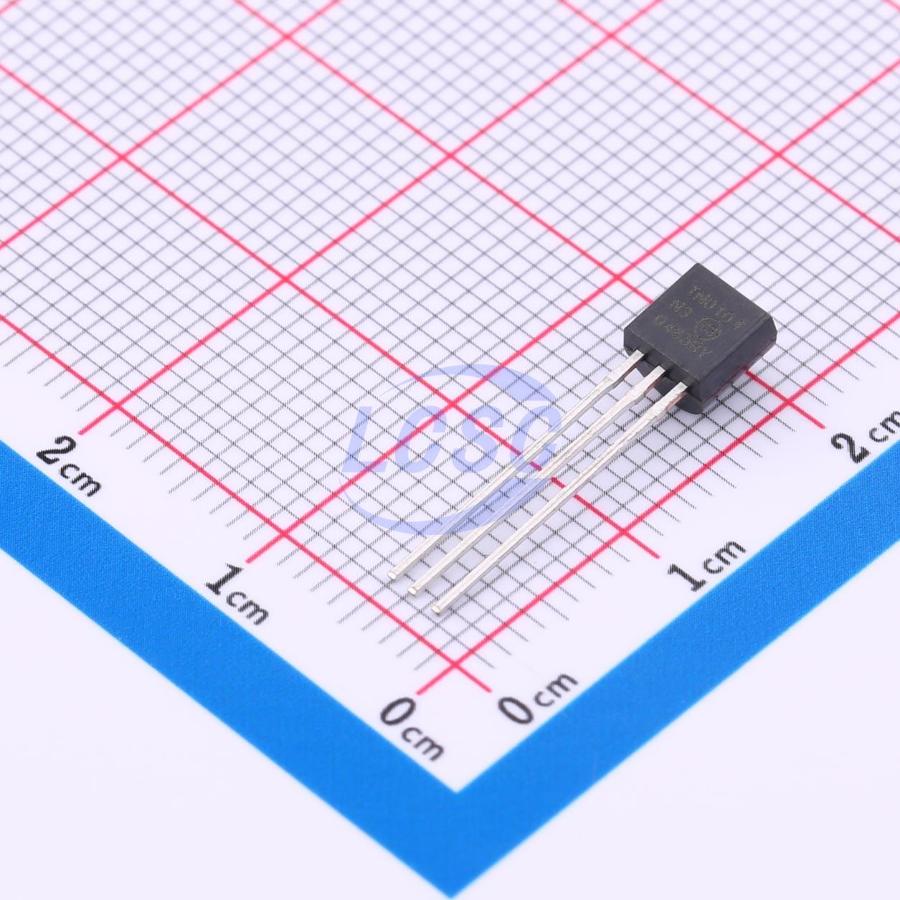

TN0104N3-G
N-Channel 40V 450mA 1W Through Hole TO-92
TO-92ROHS3 CompliantActive
MOSFET N-CH 40V 450mA TO-92
- Manufacturer
- MICROCHIP
- Manufacturer part #
- TN0104N3-G
- Store part #
- C632577
- Package / case
- TO-92
- Category
- Single FETs, MOSFETs
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1 in stock
#C632577
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹375.51 | ₹375.51 |
| 10+ | ₹320.85 | ₹3,208.50 |
| 30+ | ₹286.64 | ₹8,599.20 |
| 100+ | ₹251.82 | ₹25,182.00 |
| 500+ | ₹236.04 | ₹1,18,020.00 |
| 1,000+ | ₹229.16 | ₹2,29,160.00 |
1 × ₹375.51
₹375.51
excl. GST
₹443.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
TN0104N3-G
₹375.51 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 50pF
- Ciss-Input Capacitance
- 70pF
- Pd - Power Dissipation
- 1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 450mA
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 1.8Ω@10V
- Number
- 1 N-channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.088 g
Overview
The TN0104 low-threshold, Enhancement-mode (normally-off) transistor uses a vertical DMOS structure and a well-proven silicon-gate manufacturing process. This combination produces a device with the power handling capabilities of bipolar transistors and the high input impedance and positive temperature coefficient inherent in MOS devices. Characteristic of all MOS structures, this device is free from thermal runaway and thermally induced secondary breakdown. Microchip’s vertical DMOS FETs are ideally suited to a wide range of switching and amplifying applications where very low threshold voltage, high breakdown voltage, high input impedance, low input capacitance, and fast switching speeds are desired.
Applications
- Logic-Level Interfaces (Ideal for TTL and CMOS)
- Solid-State Relays
- Battery-Operated Systems
- Photovoltaic Drives
- Analog Switches
- General Purpose Line Drivers
- Telecommunication Switches
Key features
- 1.6V Maximum Low Threshold
- High Input Impedance
- Low Input Capacitance
- Fast Switching Speeds
- Low On-Resistance
- Free from Secondary Breakdown
- Low Input and Output Leakage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TN0610N3-G#C632579MICROCHIP · TO-92-3 | MICROCHIP | TO-92-3 | 8 | ₹417.42 · 8 in stock | View |
 | VN2406L-G#C632603MICROCHIP · TO-92-3 | MICROCHIP | TO-92-3 | 4 | ₹470.94 · 4 in stock | View |
 | ZVN2106A#C500798DIODES · TO-92-3 | DIODES | TO-92-3 | 4,000 | ₹138.50 · 4,000 in stock | View |
 | VN2222LL-G#C152170MICROCHIP · TO-92 | MICROCHIP | TO-92 | 41 | ₹74.86 · 41 in stock | View |
 | UK2962L-T9N-B#C2978930UTC · TO-92-3 | UTC | TO-92-3 | 1,135 | ₹23.40 · 1,135 in stock | View |
