TECH PUBLICDatasheet (PDF)

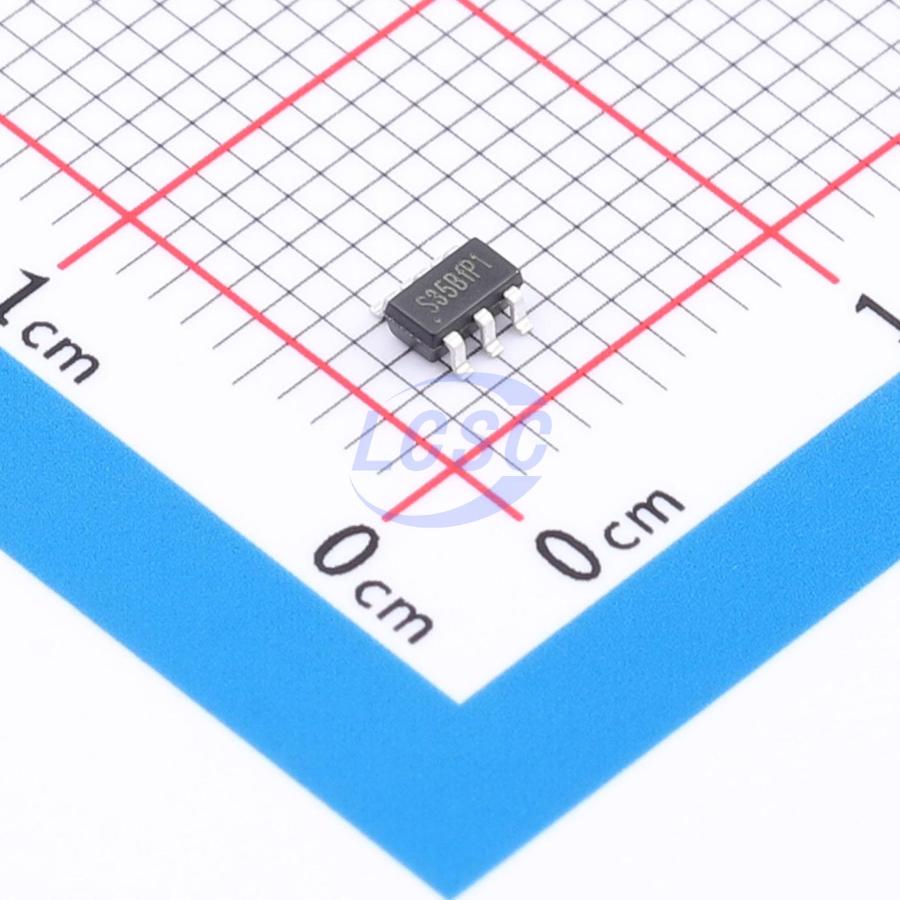

TP7820S6
1.2MHz Boost Adjustable 2V~28V 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP7820S6
- Store part #
- C22382487
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,820 in stock
#C22382487
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.40 | ₹112.00 |
| 50+ | ₹17.58 | ₹879.00 |
| 150+ | ₹15.52 | ₹2,328.00 |
| 500+ | ₹12.95 | ₹6,475.00 |
| 2,500+ | ₹11.81 | ₹29,525.00 |
| 5,000+ | ₹11.13 | ₹55,650.00 |
5 × ₹22.40
₹112.00
excl. GST
₹132.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP7820S6
₹112.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 1.2MHz
- Number of Outputs
- 1
- Function
- Boost
- Features
- Overcurrent Protection
- Topology
- Boost
- Output Type
- Adjustable
- Operating Voltage
- 2V~24V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2V~28V
- Output Current
- 2A
- Quiescent Current
- 200uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
The TP7820S6 is a constant-frequency, current-mode boost converter designed for small, low-power applications. The device switches at 1.2MHz, allowing the use of tiny, low-cost capacitors and inductors with heights of 2mm or less. An internal soft-start function reduces inrush current and extends battery life. The TP7820S6 incorporates undervoltage lockout, current limiting, and thermal overload protection to prevent damage during output overload conditions. The device is available in an environmentally compliant SOT23-6 package.
Applications
- ABS set-top box
- DVB-S/S2 satellite receiver
Key features
- 2V to 24V input voltage
- Up to 28V output voltage
- Integrated 80mΩ power MOSFET
- 1.2MHz fixed switching frequency
- Internal 4A switch current limit
- Internal compensation
- Thermal shutdown protection
- Output voltage adjustable from 0.6V
- Available in SOT23-6 package
