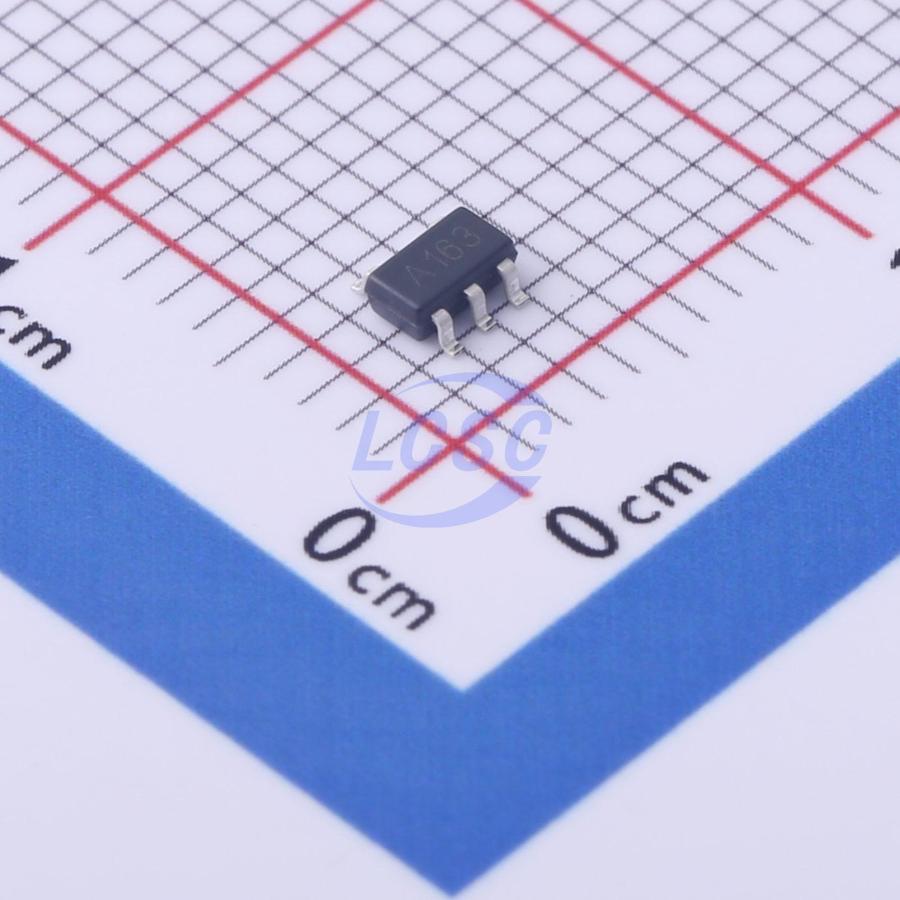

TECH PUBLIC

TP8008AAAC

Step-down type 1.5MHz Adjustable 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators

SOT-23-5RoHSActive

1A 1.5MHz Synchronous Buck Converter

Manufacturer: TECH PUBLIC
Manufacturer part #: TP8008AAAC
Store part #: C2841414
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

495 in stock

#C2841414

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹17.17	₹85.85
50+	₹13.73	₹686.50
150+	₹12.01	₹1,801.50
500+	₹10.73	₹5,365.00
3,000+	₹8.94	₹26,820.00
6,000+	₹8.43	₹50,580.00

Quantity (min 5, multiples of 5)

5 × ₹17.17

₹85.85

excl. GST

₹101.30 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP8008AAAC

₹85.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Function: Step-down type
Frequency - Switching: 1.5MHz
Number of Outputs: 1
Features: Output discharge
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.7V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 1A
Quiescent Current: 40uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

TP8008A is a high-efficiency DC to DC step down switching regulator, capable of delivering up to 1A output current. The TP8008A operates in a wide range input voltage from 2.7V to 5.5V making the IC ideal for low voltage power conversions. Running at a fixed frequency of 1.5MHz allows the use of small inductance value and low DCR inductors, thereby achieving higher efficiency.
