TECH PUBLICDatasheet (PDF)

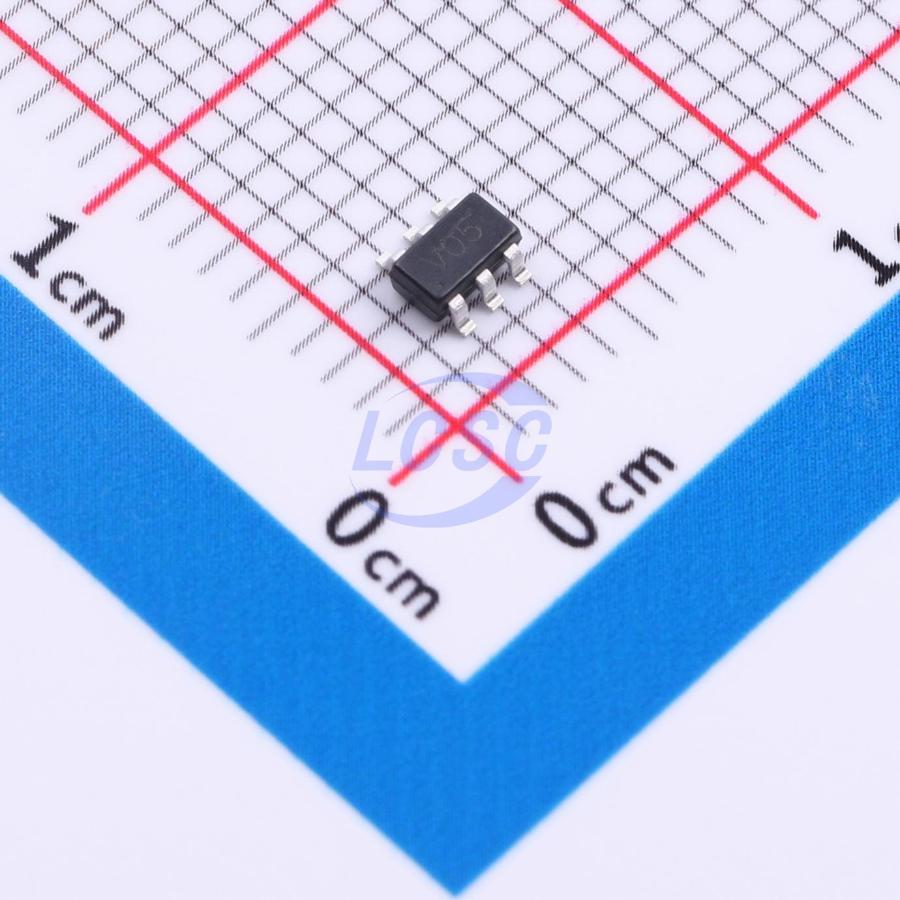

TPAZ1045-04SU
18V 4A@8/20us 150W@8/20us 7V Unidirectional 5V SOT-23-6L TVS Diodes
SOT-23-6LRoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAZ1045-04SU
- Store part #
- C52098257
- Package / case
- SOT-23-6L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,140 in stock
#C52098257
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.96 | ₹79.20 |
| 200+ | ₹3.07 | ₹614.00 |
| 600+ | ₹2.57 | ₹1,542.00 |
| 3,000+ | ₹2.28 | ₹6,840.00 |
| 9,000+ | ₹2.01 | ₹18,090.00 |
| 21,000+ | ₹1.88 | ₹39,480.00 |
20 × ₹3.96
₹79.20
excl. GST
₹93.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAZ1045-04SU
₹79.20 for 20 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -40℃~+85℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.038 g
Overview
Applications
- USB2.0
- HDMI 1.3
- SATA and eSATA
- DVI
- IEEE 1394
- PCI Express
- Portable electronic devices
- Laptops
Key features
- Reverse standoff voltage: 5V maximum
- Per-line transient protection per IEC61000-4-2 (ESD): ±30kV (contact discharge); per IEC61000-4-5 (surge): 4A (8/20μs)
- Low capacitance: C_IO - GND = 0.65 pF typical (Vcc floating)
- C_IO - GND = 0.35 pF typical (Vcc = 5V)
- Ultra-low leakage current: I_R < 1nA typical
- Low clamping voltage: V_CL = 16.5V at I_PP = 16A (transmission line pulse)
- Solid-state silicon technology
