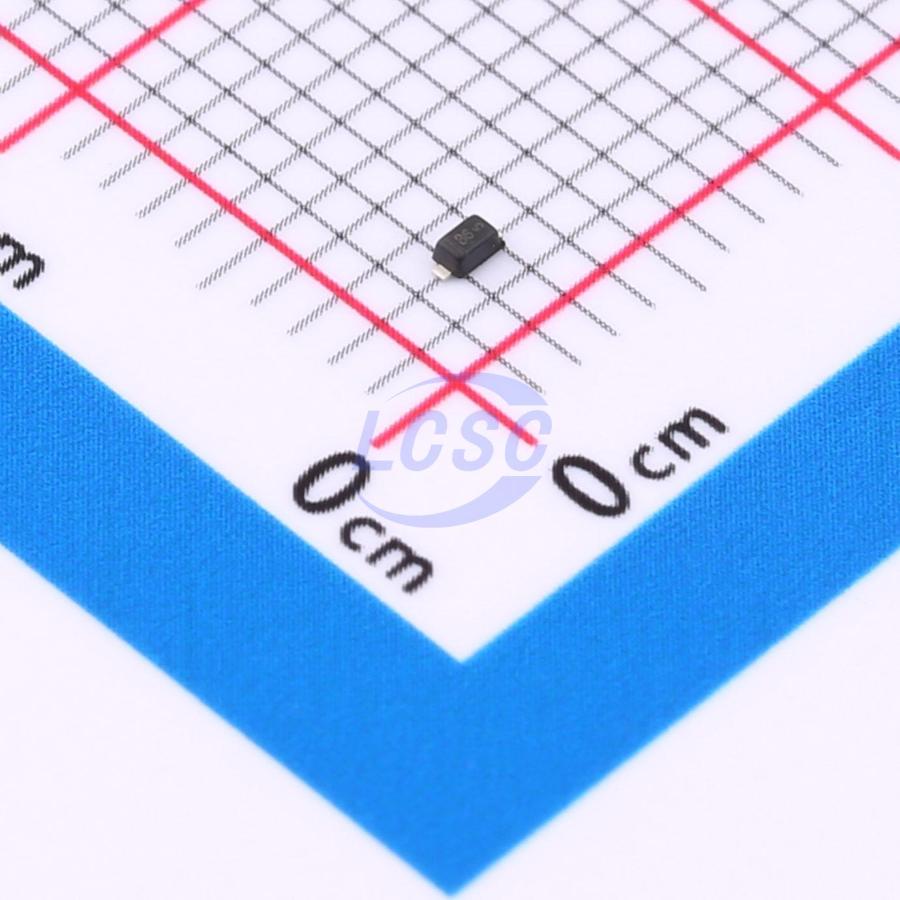

TPAZ5925-01H TECH PUBLIC
TECH PUBLIC

TPAZ5925-01H

13VC Clamp 20A@8/20us Ipp SOD-523

SOD-523RoHSActive

5VWM 13VC SOD-523

Manufacturer
TECH PUBLIC
Manufacturer part #
TPAZ5925-01H
Store part #
C48543237
Package / case
SOD-523
Category
TVS Diodes
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,800 in stock

#C48543237

Stock & price checked 15 days ago

QuantityUnit pricePack price
20+₹5.07₹101.40
200+₹4.04₹808.00
600+₹3.47₹2,082.00
3,000+₹2.84₹8,520.00
9,000+₹2.54₹22,860.00
21,000+₹2.38₹49,980.00

20 × ₹5.07

₹101.40

excl. GST

₹119.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 3,000 per reel

TPAZ5925-01H

₹101.40 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage
13V
Peak Pulse Current (Ipp)
20A@8/20us
Peak Pulse Power Dissipation (Ppp)
260W@8/20us
Voltage - Breakdown
6.5V
Reverse Leakage Current (Ir)
100nA
Reverse Stand-Off Voltage (Vrwm)
5V

Packaging & compliance

RoHS
RoHS
Lifecycle
Active
Packaging
Tape & Reel (TR)
Standard pack
3,000 / Reel
Sold per
Piece
Minimum order
20 (multiples of 20)
Unit weight
0.025 g

Overview

Applications

  • Mobile phones & accessories
  • Personal digital assistants
  • Laptops & handheld devices
  • Portable instruments
  • Peripheral devices

Key features

  • Low operating voltage: 5V
  • Ultra-low leakage current: nA level
  • Low clamping voltage
  • Compliant with IEC 61000-4-2 (ESD) immunity test standard: Air discharge: ±30kV; Contact discharge: ±30kV
  • Compliant with IEC 61000-4-4 (EFT) standard: 40A (5/50ns)
  • Compliant with IEC 61000-4-5 (Lightning Surge) standard: 20A (8/20μs)
  • 2-pin leadless package
  • Typical response time < 1 ns
  • Package: SOD523 (0603)
  • Lead finish: Matte Tin
  • Case material: "Green" molding compound
