TECH PUBLICDatasheet (PDF)

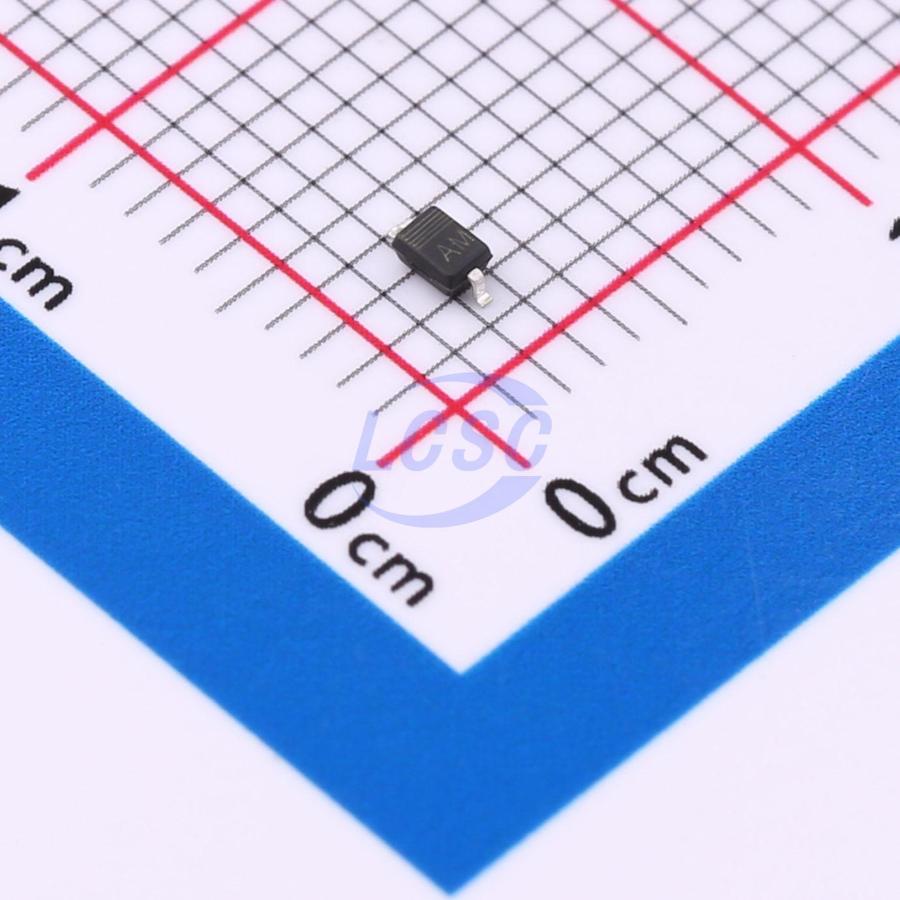

TPAZ9824-01L
70VC Clamp 5A Ipp SOD-323
SOD-323RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAZ9824-01L
- Store part #
- C41408051
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C41408051
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.82 | ₹58.20 |
| 100+ | ₹4.67 | ₹467.00 |
| 300+ | ₹4.10 | ₹1,230.00 |
| 3,000+ | ₹3.66 | ₹10,980.00 |
| 6,000+ | ₹3.32 | ₹19,920.00 |
| 9,000+ | ₹3.15 | ₹28,350.00 |
10 × ₹5.82
₹58.20
excl. GST
₹68.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAZ9824-01L
₹58.20 for 10 + GST
Specifications
- Clamping Voltage
- 70V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 5A
- Peak Pulse Power Dissipation (Ppp)
- 160W
- Voltage - Breakdown
- 30.3V
- Reverse Leakage Current (Ir)
- 50nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Applications
- USB 2.0 power and data line
- Set - top box and digital TV
- LIN BUS
- AEC - Q101 qualified
Key features
- 160W peak pulse power (8/20μs)
- Low operating: 15V and 24V
- Ultra low capacitance: 13 p Typ
- Ultra low leakage: nA level
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±23kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- RoHS Compliant
