TECH PUBLIC

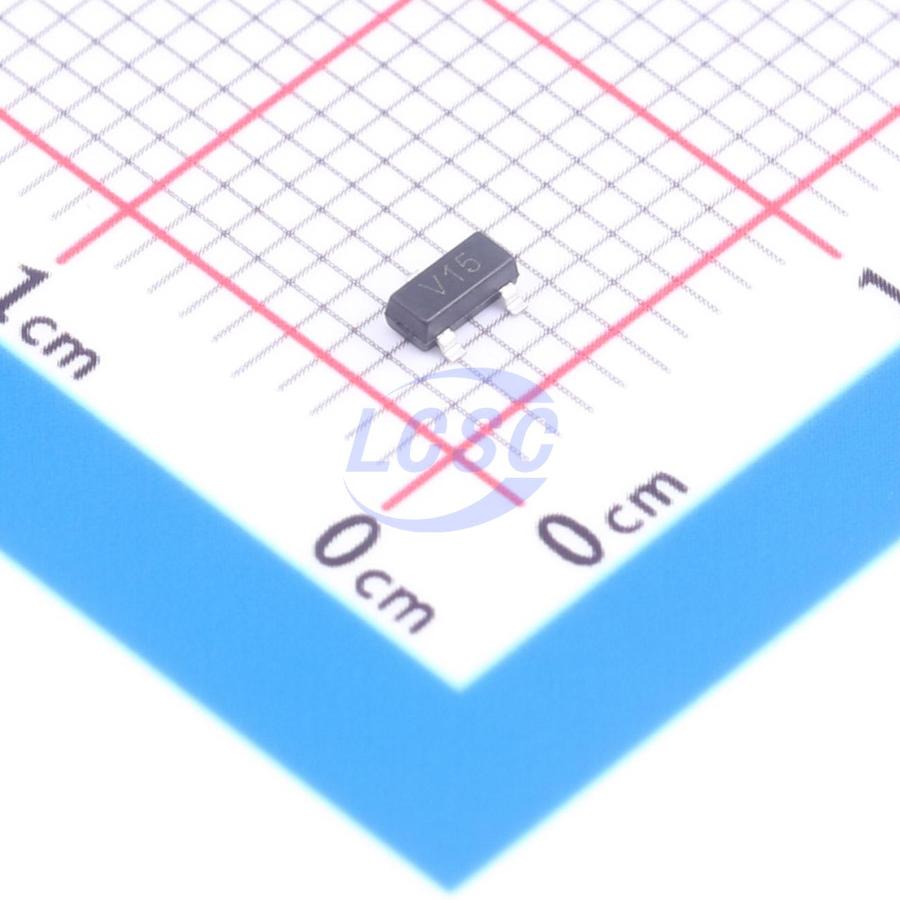

TPBV-T317Z2D

33V 12A@8/20us 380W@8/20us 16V Unidirectional 15V SOT-23 TVS Diodes

SOT-23RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPBV-T317Z2D
Store part #: C54561781
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C54561781

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
10+	₹8.02	₹80.20
100+	₹6.31	₹631.00
300+	₹5.45	₹1,635.00
3,000+	₹4.80	₹14,400.00
6,000+	₹4.30	₹25,800.00
9,000+	₹4.04	₹36,360.00

Quantity (min 10, multiples of 10)

10 × ₹8.02

₹80.20

excl. GST

₹94.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPBV-T317Z2D

₹80.20 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 33V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 12A@8/20us
Peak Pulse Power Dissipation (Ppp): 380W@8/20us
Number of Channels: 1
Voltage - Breakdown: 16V
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 15V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.032 g

Overview

Applications

Mobile phones & accessories
Laptops & handheld devices
Portable instruments
Set-top boxes
Industrial control

Key features

380W peak pulse power (8/20μs)
Protects one bidirectional line or two unidirectional lines
Ultra-low leakage: nanoamp-level
Working voltage: 15V
Low clamping voltage
Compliant with the following standards:
IEC 61000-4-2 (ESD) immunity test
Air discharge: ±30kV
Contact discharge: ±30kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (surge) 12A (8/20μs)
RoHS compliant
Package: SOT-23
Lead finish: matte tin
Body material: "green" molding compound
UL flammability classification 94V-0
Moisture sensitivity: Level 3 per J-STD-020
Packaging quantity: 3000 pcs/7-inch reel
