TECH PUBLICDatasheet (PDF)

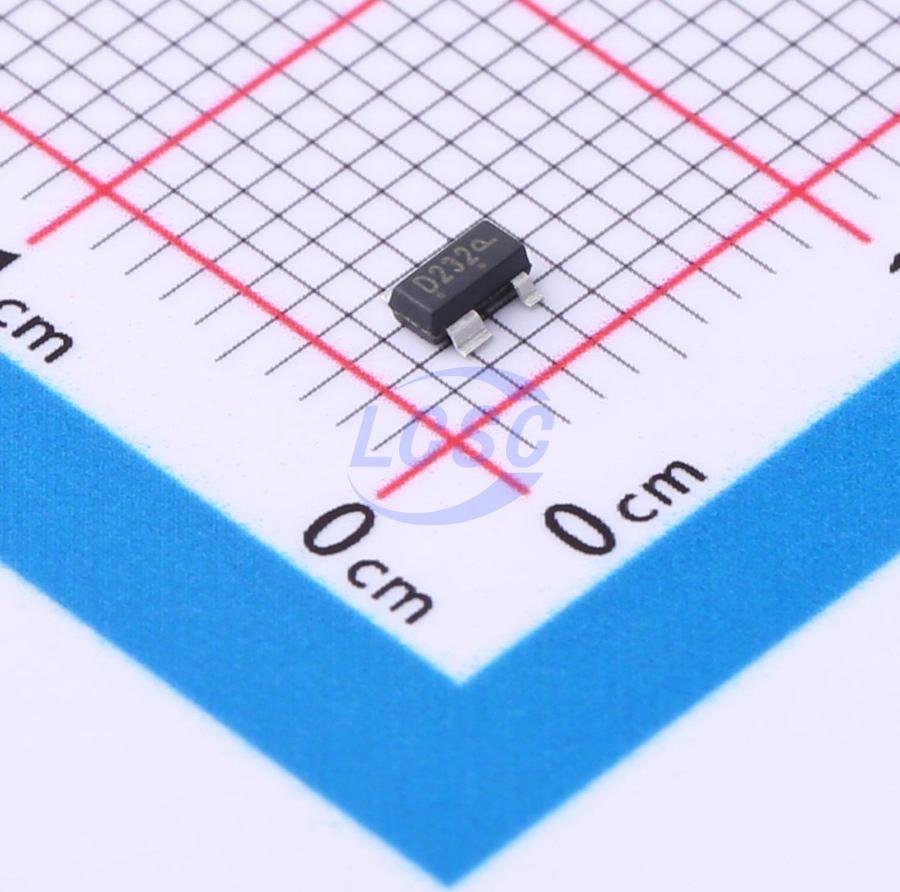

TPCM1213A-02SR
15VC Clamp 6A@8/20us Ipp SOT-143
SOT-143RoHSActive
5VWM 15VC SOT-143
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPCM1213A-02SR
- Store part #
- C2901319
- Package / case
- SOT-143
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,500 in stock
#C2901319
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.55 | ₹57.75 |
| 50+ | ₹9.26 | ₹463.00 |
| 150+ | ₹8.11 | ₹1,216.50 |
| 500+ | ₹7.25 | ₹3,625.00 |
| 3,000+ | ₹5.90 | ₹17,700.00 |
| 6,000+ | ₹5.56 | ₹33,360.00 |
5 × ₹11.55
₹57.75
excl. GST
₹68.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPCM1213A-02SR
₹57.75 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Peak Pulse Current (Ipp)
- 6A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 6.5V
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Applications
- USB2.0 power and data line
- Set - top box and digital TV
- Digital video interface (DVI)
- Notebook Computers
- SIM Ports
- 10/100 Ethernet
Key features
- Ultralow leakage: nA level
- Operating voltage: 5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC61000 - 4 - 5 (Lightning) 6A (8/20μs)
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- RoHS Compliant
