TECH PUBLIC

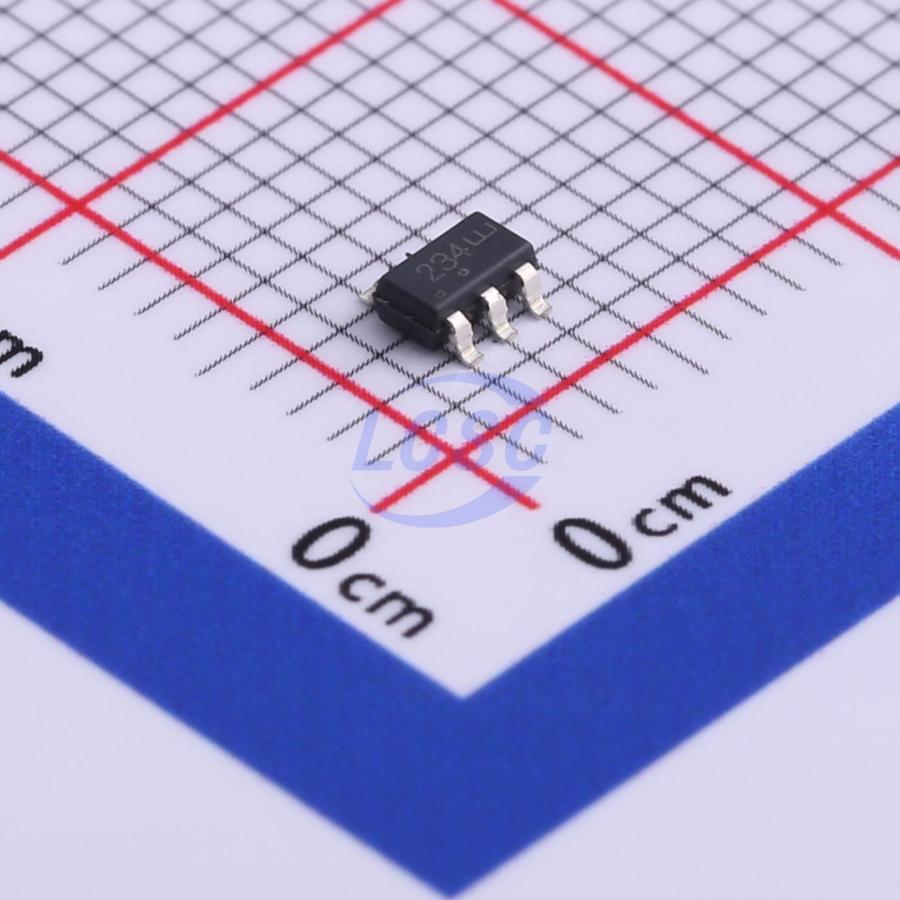

TPCM1213A-04SO

20VC Clamp ESD DIODE SOT-23-6

SOT-23-6RoHSActive

ESD DIODE 3.3VWM 20VC SOT-23-6

Manufacturer: TECH PUBLIC
Manufacturer part #: TPCM1213A-04SO
Store part #: C558414
Package / case: SOT-23-6
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

700 in stock

#C558414

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹9.72	₹97.20
100+	₹7.63	₹763.00
300+	₹6.60	₹1,980.00
3,000+	₹5.82	₹17,460.00
6,000+	₹5.19	₹31,140.00
9,000+	₹4.87	₹43,830.00

Quantity (min 10, multiples of 10)

10 × ₹9.72

₹97.20

excl. GST

₹114.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPCM1213A-04SO

₹97.20 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 20V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 3A@8/20us
Number of Channels: Four channels
Voltage - Breakdown: 6V
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 300nA
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.04 g

Overview

Applications

USB 2.0 and USB 3.0 Ports
USB OTG
Digital video interface(DVI)
Monitor and Flat Panel Displays
PCI Express and Serial SATA Ports
Gigabit Ethernet
IEEE 1394 firewire ports
Consumer products (STB, DVD, DSC, DVC…)

Key features

Ultra low capacitance: 0.35 pF typical (I/O to I/O )
Ultra low leakage: nA level
Low operating voltage: 5.5V
Low clamping voltage
Up to 4 data lines and one power line protects
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±25kV
IEC61000-4-4 (EFT) 40A (5/50ns)
ROHS Compliant
