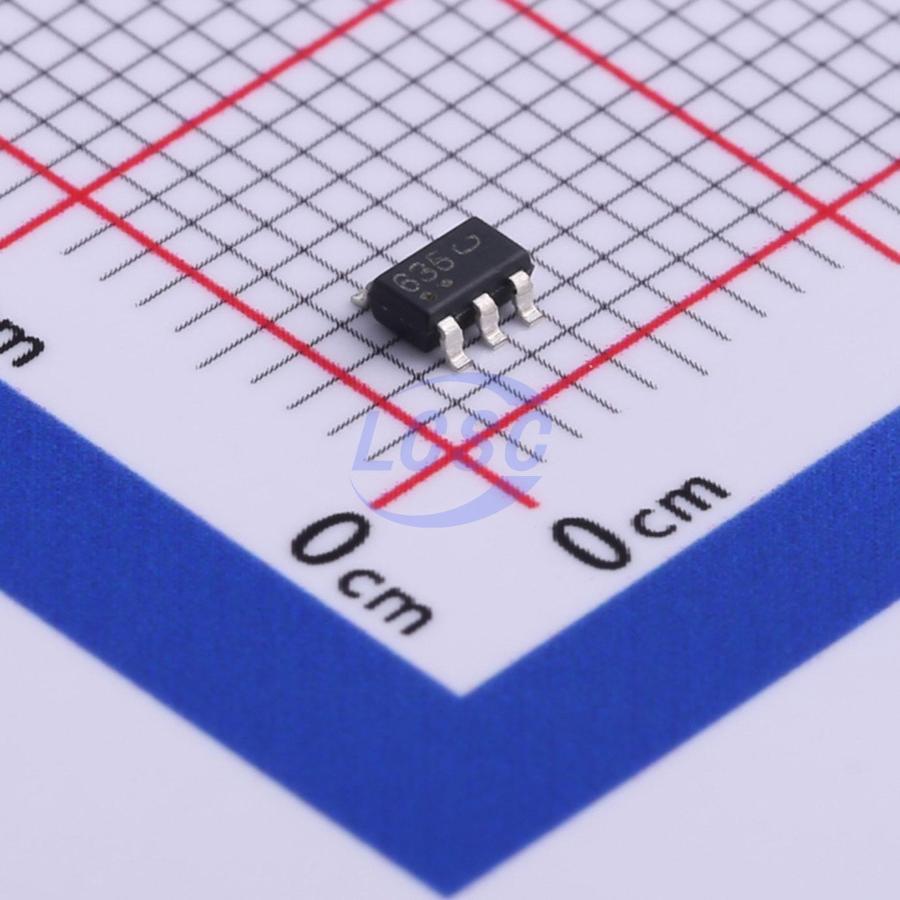

TPCM1293A-04SO TECH PUBLIC

TPCM1293A-04SO

20VC Clamp ESD DIODE SOT-23-6

SOT-23-6RoHSActive

ESD DIODE 3.3VWM 20VC SOT-23-6

Manufacturer: TECH PUBLIC
Manufacturer part #: TPCM1293A-04SO
Store part #: C558415
Package / case: SOT-23-6
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,730 in stock

#C558415

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
10+	₹7.58	₹75.80
100+	₹6.03	₹603.00
300+	₹5.25	₹1,575.00
3,000+	₹4.33	₹12,990.00
6,000+	₹3.86	₹23,160.00
9,000+	₹3.63	₹32,670.00

Quantity (min 10, multiples of 10)

10 × ₹7.58

₹75.80

excl. GST

₹89.44 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPCM1293A-04SO

₹75.80 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 20V
Peak Pulse Current (Ipp): 3A@8/20us
Voltage - Breakdown: 6V
type: ESD
Reverse Leakage Current (Ir): 300nA
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.04 g

Overview

Applications

USB 2.0 and USB 3.0 ports
USB OTG
Digital Video Interface (DVI)
Monitors and flat panel displays
PCI Express and serial SATA ports
Gigabit Ethernet
IEEE 1394 FireWire ports
Consumer products (set-top boxes, DVD, digital cameras, digital camcorders, etc.)

Key features

Ultra-low capacitance: 0.35 pF typical (I/O to I/O)
Ultra-low leakage: nanoamp-level
Low operating voltage: 5.5V
Low clamping voltage
Protects up to 4 data lines and 1 power line
Compliant with the following standards:
IEC 61000-4-2 (ESD) immunity test: air discharge: ±25 kV, contact discharge: ±25 kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
RoHS compliant
