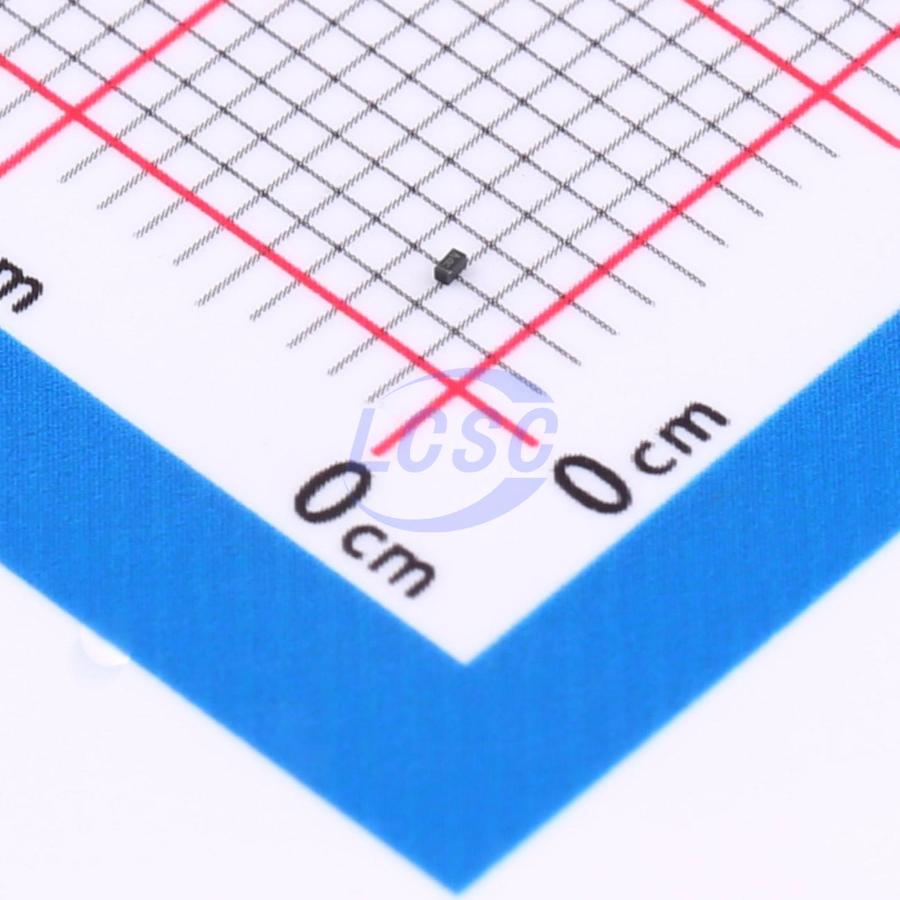

TPD1E01B04DPLR-TP
9VC Clamp 3A@8/20us Ipp X2-SON-2(0.3x0.6)
X2-SON-2(0.3x0.6)RoHSActive
3.6VWM 9VC X2-SON-2(0.3x0.6)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPD1E01B04DPLR-TP
- Store part #
- C2858717
- Package / case
- X2-SON-2(0.3x0.6)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,600 in stock
#C2858717
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.35 | ₹83.50 |
| 100+ | ₹6.80 | ₹680.00 |
| 300+ | ₹6.02 | ₹1,806.00 |
| 1,000+ | ₹5.44 | ₹5,440.00 |
| 5,000+ | ₹4.25 | ₹21,250.00 |
| 10,000+ | ₹4.02 | ₹40,200.00 |
10 × ₹8.35
₹83.50
excl. GST
₹98.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TPD1E01B04DPLR-TP
₹83.50 for 10 + GST
Specifications
- Clamping Voltage
- 9V
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 30W@8/20us
- Voltage - Breakdown
- 6.4V
- Reverse Leakage Current (Ir)
- 10nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.6V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.079 g
Overview
Applications
- USB Type - C
- Thunderbolt 3
- Set - Top Boxes
- DisplayPort 1.3
- PCI Express 3
Key features
- Ultra low capacitance: 0.18 pF typical (I/O to GND)
- Ultralow leakage: nA level
- Breakdown Voltage: 6.4 V (typ)
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±20 kV Contact discharge: ±15 kV
- IEC 61000 - 4 - 4 (EFT) 80A (5/50ns)
- IEC 61000 - 4 - 5 (Lightning): 3A (8/20μs)
- ROHS Compliant
