TECH PUBLIC

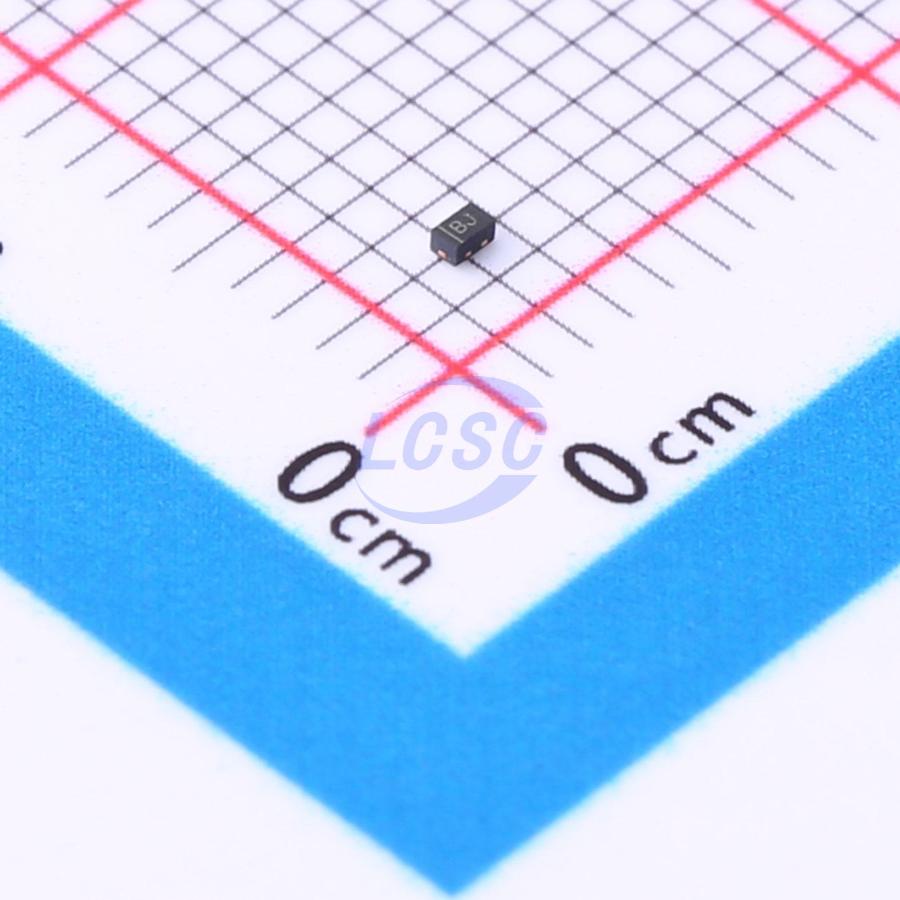

TPD1E10B09DPYR-TP

13VC 20VC Clamp 5A@8/20us Ipp ESD DIODE X1-SON-2(0.6x1)

X1-SON-2(0.6x1)RoHSActive

ESD DIODE 9VWM 13VC 20VC X1-SON-2(0.6x1)

Manufacturer: TECH PUBLIC
Manufacturer part #: TPD1E10B09DPYR-TP
Store part #: C2827722
Package / case: X1-SON-2(0.6x1)
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,620 in stock

#C2827722

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
20+	₹5.21	₹104.20
200+	₹4.17	₹834.00
600+	₹3.65	₹2,190.00
2,000+	₹3.25	₹6,500.00
10,000+	₹2.59	₹25,900.00
20,000+	₹2.43	₹48,600.00

Quantity (min 20, multiples of 20)

20 × ₹5.21

₹104.20

excl. GST

₹122.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

TPD1E10B09DPYR-TP

₹104.20 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 13V;20V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 5A@8/20us
Peak Pulse Power Dissipation (Ppp): 100W@8/20us
Voltage - Breakdown: 13.7V
type: ESD
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 9V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.011 g

Overview

Applications

Cellular Handsets & Accessories
Personal Digital Assistants
Display Port
MDDI Ports
Audio Players
PCI Express
Serial ATA

Key features

Low operating voltage: ±9V
Ultra low capacitance: 8pF typical
Ultra low leakage: nA level
Low clamping voltage
2-pin leadless package
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±20kV
IEC61000-4-5 (Lightning) 5A (8/20μs)
RoHS Compliant
