TECH PUBLICDatasheet (PDF)

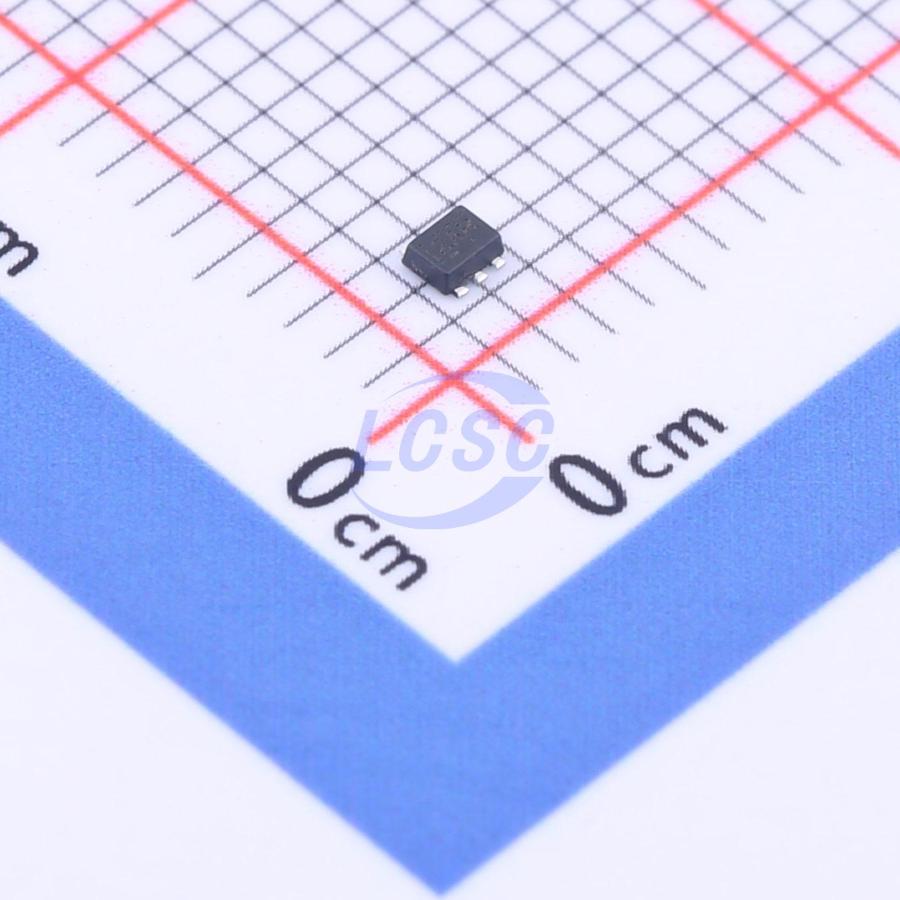

TPD2E001DRLR-TP
15VC Clamp 5A@8/20us Ipp ESD DIODE SOT-553
SOT-553RoHSActive
ESD DIODE 5.5VWM 15VC SOT-553
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPD2E001DRLR-TP
- Store part #
- C2923370
- Package / case
- SOT-553
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,885 in stock
#C2923370
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.44 | ₹102.20 |
| 50+ | ₹16.43 | ₹821.50 |
| 150+ | ₹14.42 | ₹2,163.00 |
| 500+ | ₹11.64 | ₹5,820.00 |
| 2,500+ | ₹10.44 | ₹26,100.00 |
| 4,000+ | ₹9.84 | ₹39,360.00 |
5 × ₹20.44
₹102.20
excl. GST
₹120.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPD2E001DRLR-TP
₹102.20 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 75W@8/20us
- Voltage - Breakdown
- 8V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
Applications
- PCI Express and serial SATA ports
- Digital Video Interface (DVI)
- USB OTG
- USB 2.0 and USB 3.0 ports
- Gigabit Ethernet
Key features
- Low operating voltage: 5.5V
- Ultra-low capacitance: 1.5pF
- Ultra-low leakage: nA-level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test: Air discharge: ±20kV, Contact discharge: ±15kV
- IEC 61000-4-4 (EFT): 40A (5/50ns)
- IEC 61000-4-5 (Lightning Surge): 5A (8/20μs)
- Lead-free devices
- Response time typically < 1ns
- Package: SOT-553
- Lead finish: Matte tin
- Molding compound: "Green" molding compound
- IEC 61000-4-2 (ESD) immunity test
- Moisture sensitivity: Level 3 per J-STD-020
