TECH PUBLICDatasheet (PDF)

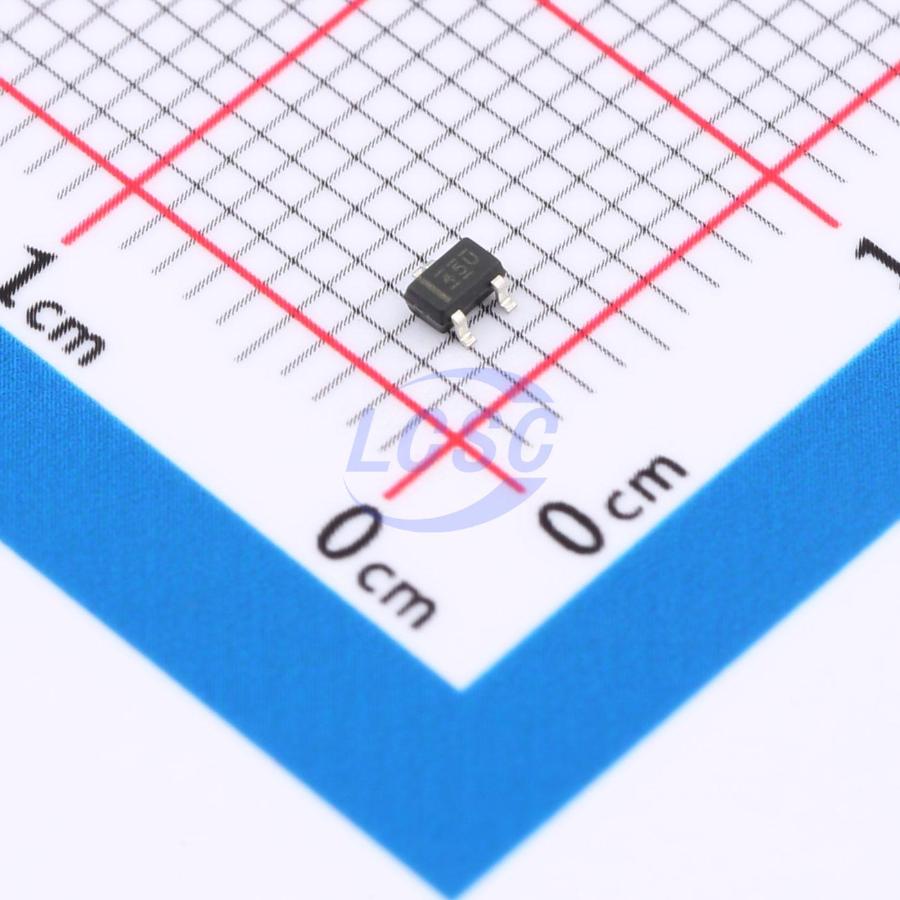

TPD2E007DCKR-TP
10VC Clamp 6A@8/20us Ipp ESD DIODE SOT-323
SOT-323RoHSActive
ESD DIODE 13.5VWM 10VC SOT-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPD2E007DCKR-TP
- Store part #
- C521964
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,630 in stock
#C521964
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.21 | ₹131.05 |
| 50+ | ₹20.73 | ₹1,036.50 |
| 150+ | ₹18.39 | ₹2,758.50 |
| 500+ | ₹15.45 | ₹7,725.00 |
| 3,000+ | ₹14.16 | ₹42,480.00 |
| 6,000+ | ₹13.38 | ₹80,280.00 |
5 × ₹26.21
₹131.05
excl. GST
₹154.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPD2E007DCKR-TP
₹131.05 for 5 + GST
Specifications
- Clamping Voltage
- 10V
- Peak Pulse Current (Ipp)
- 6A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 65W@8/20us
- Voltage - Breakdown
- 14V
- Number of Channels
- 2
- type
- ESD
- Reverse Leakage Current (Ir)
- 7nA
- Reverse Stand-Off Voltage (Vrwm)
- 13.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- Cell Phones
- Audio Interface Connections
- Consumer Electronics (DVR, Set - Top Box, TV)
- Industrial Interfaces (RS - 232, RS - 485, RS - 422, LVDS)
Key features
- Ultralow leakage: nA level
- Operating voltage: ±13.5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±15kV Contact discharge: ±8kV
- IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC 61000 - 4 - 5 (Lightning) 6A (8/20μs)
- RoHS Compliant
