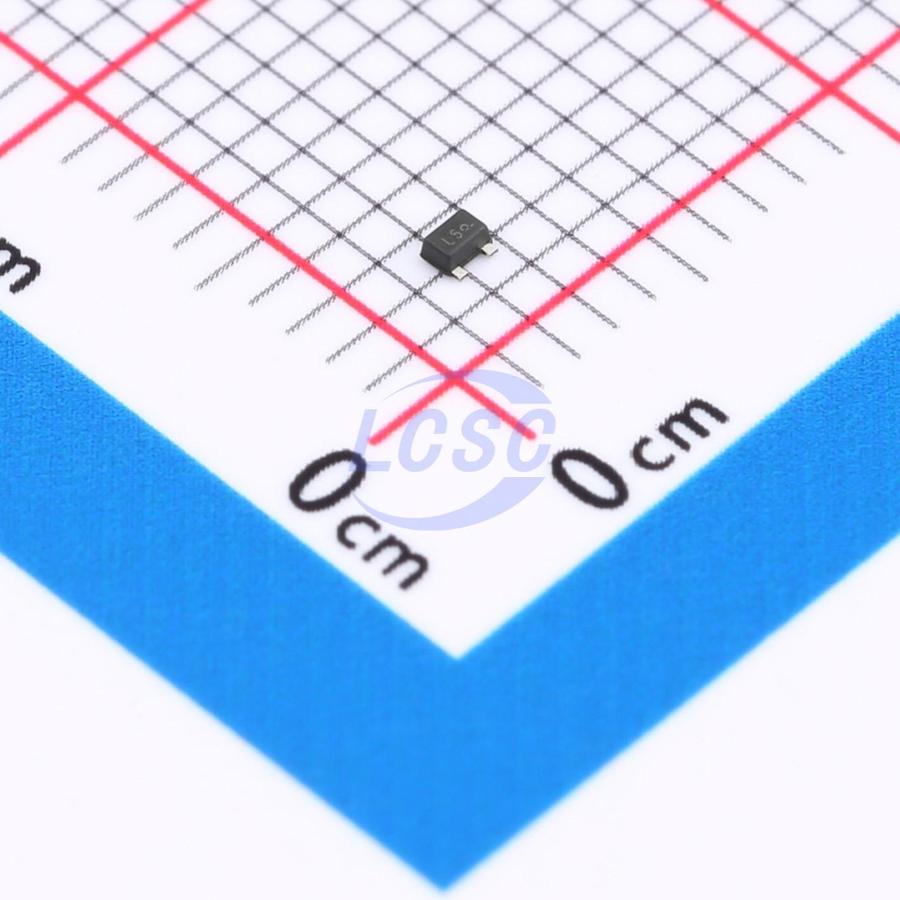

TPD2E009DRTR-TP TECH PUBLIC

TPD2E009DRTR-TP

18VC Clamp 3A@8/20us Ipp TVS DIODE SOT-723

SOT-723RoHSActive

TVS DIODE 5.5VWM 18VC SOT-723

Manufacturer: TECH PUBLIC
Manufacturer part #: TPD2E009DRTR-TP
Store part #: C2858690
Package / case: SOT-723
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,650 in stock

#C2858690

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
5+	₹23.83	₹119.15
50+	₹21.01	₹1,050.50
150+	₹19.79	₹2,968.50
500+	₹18.30	₹9,150.00
2,500+	₹15.44	₹38,600.00
5,000+	₹15.03	₹75,150.00

Quantity (min 5, multiples of 5)

5 × ₹23.83

₹119.15

excl. GST

₹140.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 8,000 per reel

TPD2E009DRTR-TP

₹119.15 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 18V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 3A@8/20us
Peak Pulse Power Dissipation (Ppp): 50W@8/20us
Voltage - Breakdown: 7V
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 8,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.012 g

Overview

Applications

Notebooks
Set - top boxes
DVD players
Media players
Portable computers

Key features

Supports USB 3.0 data rates (5 Gbps)
Ultra low capacitance: 0.4pF typical I/O to GND
Ultralow leakage: nA level
Low operating voltage: 5.5V
Uni - directional TVS Diode Array
Low clamping voltage
Complies with following standards:
IEC 61000 - 4 - 2 (ESD) immunity test: Air discharge: ±20kV, Contact discharge: ±18kV
IEC 61000 - 4 - 5 (Lightning) 3.3A (8/20 μs)
IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
ROHS Compliant
