TECH PUBLICDatasheet (PDF)

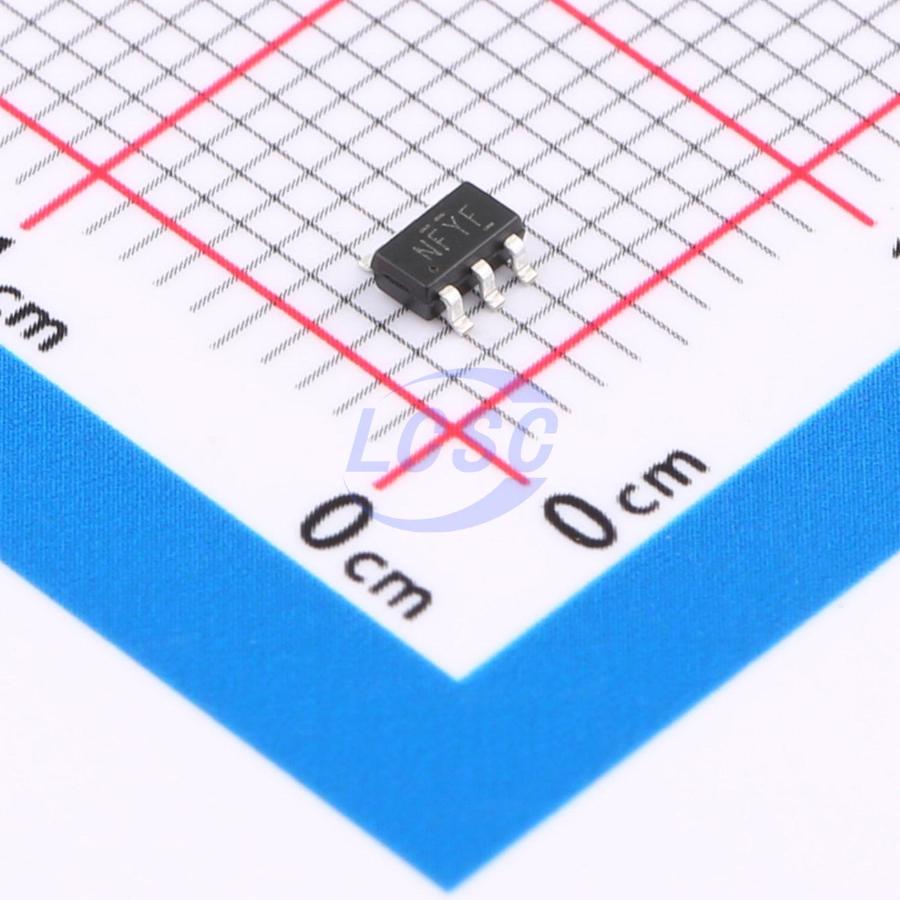

TPD4E001DBVR-TP
15VC Clamp ESD DIODE SOT-23-6
SOT-23-6RoHSActive
ESD DIODE 5.5VWM 15VC SOT-23-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPD4E001DBVR-TP
- Store part #
- C2827618
- Package / case
- SOT-23-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
780 in stock
#C2827618
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.05 | ₹60.25 |
| 50+ | ₹9.68 | ₹484.00 |
| 150+ | ₹8.49 | ₹1,273.50 |
| 500+ | ₹7.61 | ₹3,805.00 |
| 3,000+ | ₹6.09 | ₹18,270.00 |
| 6,000+ | ₹5.74 | ₹34,440.00 |
5 × ₹12.05
₹60.25
excl. GST
₹71.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPD4E001DBVR-TP
₹60.25 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
Applications
- USB 2.0 and USB 3.0 Ports
- USB OTG
- Digital video interface(DVI)
- Monitor and Flat Panel Displays
- PCI Express and Serial SATA Ports
- Gigabit Ethernet
- IEEE1394 firewire ports
- Consumer products (STB, DVD, DSC, DVC...)
Key features
- Ultra low capacitance: 1.5pF(Max)
- Ultra low leakage: nA level
- Low operating voltage: 5.5V
- Low clamping voltage
- Complies with following standards:
- IEC61000 - 4 - 2(ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
- IEC61000 - 4 - 4(EFT) 40A(5/50ns)
- ROHS Compliant
