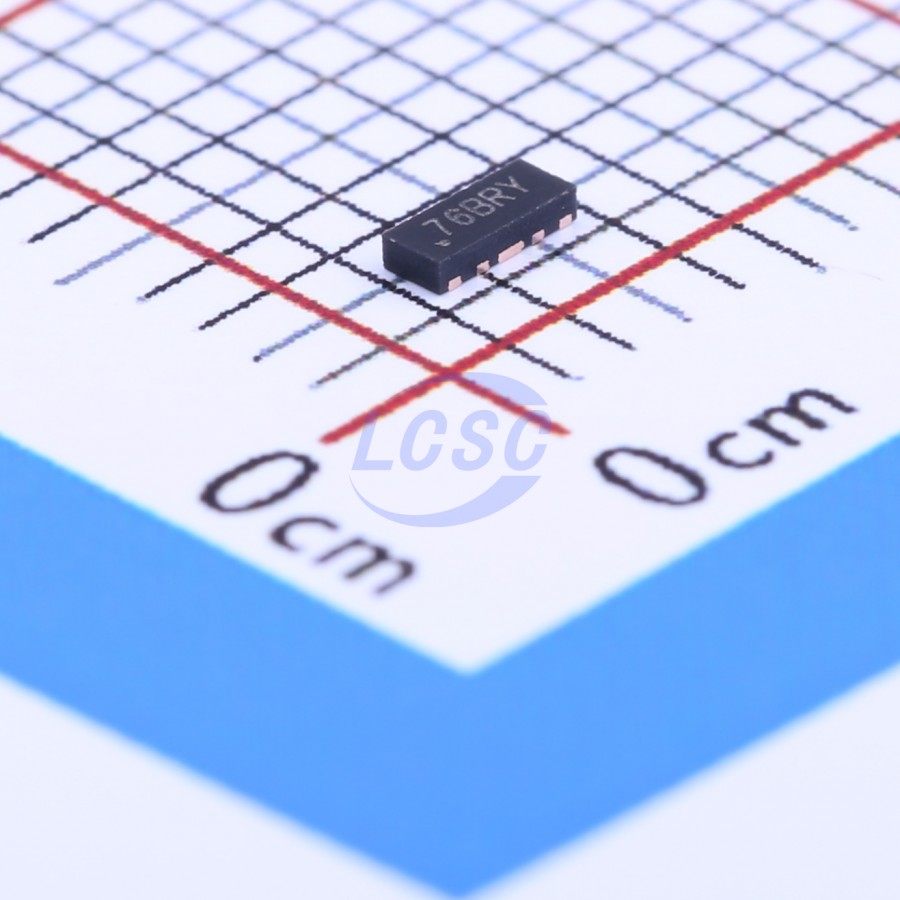

TPD4E05U06DQAR
14VC Clamp 2.5A@8/20us Ipp TVS DIODE USON-10(1x2.5)
TVS DIODE 5.5VWM 14VC USON-10(1x2.5)
- Manufacturer
- TI
- Manufacturer part #
- TPD4E05U06DQAR
- Store part #
- C138714
- Package / case
- USON-10(1x2.5)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,12,080 in stock
#C138714
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.21 | ₹56.05 |
| 50+ | ₹8.88 | ₹444.00 |
| 150+ | ₹7.67 | ₹1,150.50 |
| 500+ | ₹6.68 | ₹3,340.00 |
| 3,000+ | ₹6.34 | ₹19,020.00 |
| 6,000+ | ₹6.10 | ₹36,600.00 |
5 × ₹11.21
₹56.05
excl. GST
₹66.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPD4E05U06DQAR
₹56.05 for 5 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 2.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 40W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 8.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 10nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 6.43 g
Overview
The TPDxE05U06 is a family of unidirectional Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diodes with ultra-low capacitance. Each device can dissipate ESD strikes above the maximum level specified by the IEC 61000-4-2 international standard. The TPDxE05U06s ultra-low loading capacitance makes it ideal for protecting any high-speed signal pins. Typical applications for TPDxE05U06 includes high speed signal lines in HDMI 1.4b, HDMI 2.0, USB 3.0, MHL, LVDS, DisplayPort, PCI-Express, eSata, and V-by-One HS.
Applications
- HDMI 1.4b
- HDMI 2.0
- USB 3.0
- MHL
- LVDS Interfaces
- DisplayPort
- PCI-Express
- eSata Interfaces V-by-One HS
Key features
- IEC 61000-4-2 Level 4 ESD Protection
- ±12-kV Contact Discharge ±15-kV Air Gap Discharge
- IEC 61000-4-4 EFT Protection
- 80 A (5/50 ns)
- IEC 61000-4-5 Surge Protection
- 2.5 A (8/20 μs)
- IO Capacitance 0.42 pF to 0.5 pF (Typical)
- DC Breakdown Voltage 6.5 V (Minimum)
- Ultra low Leakage Current 10 nA (Maximum)
- Low ESD Clamping Voltage
- Industrial Temperature Range: -40°C to +125°C
- Easy Straight-Through Routing Packages
