TECH PUBLICDatasheet (PDF)

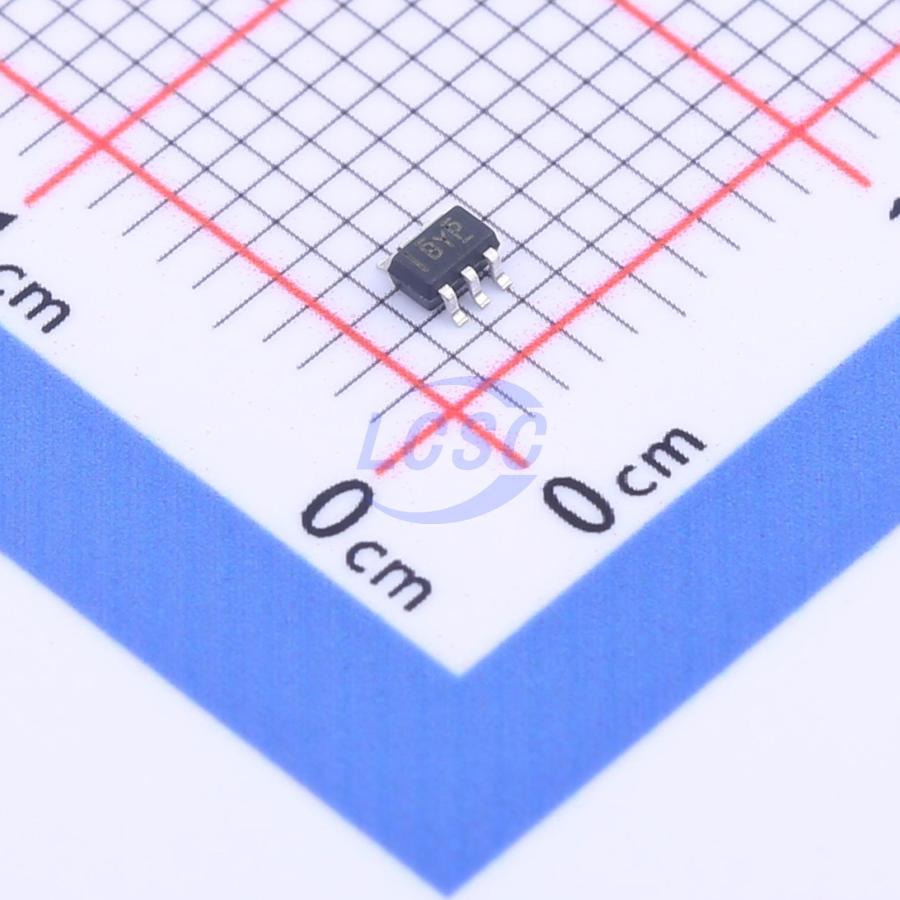

TPD4E1B06DCKR-TP
14.5VC Clamp ESD DIODE SOT-363
SOT-363RoHSActive
ESD DIODE 5.5VWM 14.5VC SOT-363
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPD4E1B06DCKR-TP
- Store part #
- C2923390
- Package / case
- SOT-363
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,480 in stock
#C2923390
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.14 | ₹160.70 |
| 50+ | ₹25.57 | ₹1,278.50 |
| 150+ | ₹22.76 | ₹3,414.00 |
| 500+ | ₹19.24 | ₹9,620.00 |
| 3,000+ | ₹15.58 | ₹46,740.00 |
| 6,000+ | ₹14.65 | ₹87,900.00 |
5 × ₹32.14
₹160.70
excl. GST
₹189.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPD4E1B06DCKR-TP
₹160.70 for 5 + GST
Specifications
- Clamping Voltage
- 14.5V
- Voltage - Breakdown
- 9.5V
- Number of Channels
- Four channels
- type
- ESD
- Reverse Leakage Current (Ir)
- 900pA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- Glucose Meter
- Tablets
- GPS
- Portable Media Players
Key features
- Ultralow capacitance: 0.6 pF typical I/O to GND
- Ultralow leakage: nA level
- Low operating voltage: 5.5V
- Bi-directional TVS Diode Array
- Low clamping voltage
- Transient Protection for 4 I/O Lines
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±20 kV Contact discharge: ±15 kV
- IEC 61000 - 4 - 5 Surge 2.8 A (8/20us)
- IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
- ROHS Compliant
