TECH PUBLICDatasheet (PDF)

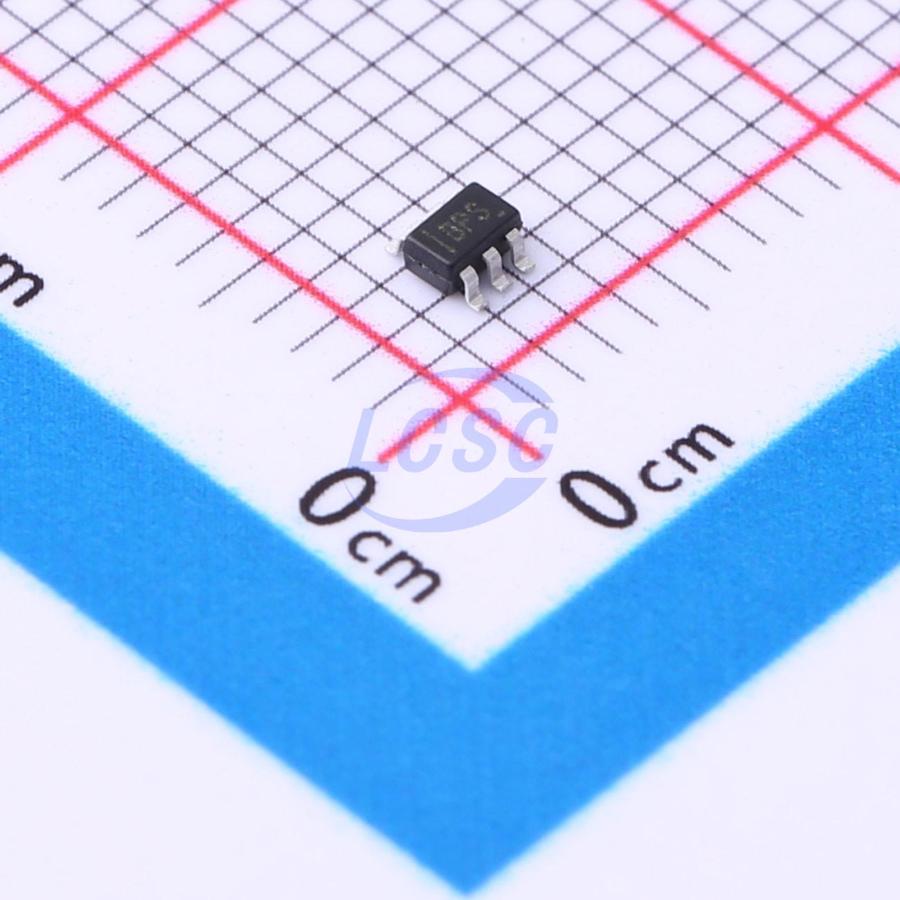

TPD4E1U06DCKR-TP
14VC Clamp ESD DIODE SOT-363
SOT-363RoHSActive
ESD DIODE 5.5VWM 14VC SOT-363
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPD4E1U06DCKR-TP
- Store part #
- C2905645
- Package / case
- SOT-363
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,580 in stock
#C2905645
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.46 | ₹104.60 |
| 100+ | ₹8.43 | ₹843.00 |
| 300+ | ₹7.40 | ₹2,220.00 |
| 3,000+ | ₹5.94 | ₹17,820.00 |
| 6,000+ | ₹5.32 | ₹31,920.00 |
| 9,000+ | ₹5.01 | ₹45,090.00 |
10 × ₹10.46
₹104.60
excl. GST
₹123.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPD4E1U06DCKR-TP
₹104.60 for 10 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 50W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6.5V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 10nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Applications
- Glucose Meter
- Tablets
- GPS
- Portable Media Players
Key features
- Ultralow capacitance: 0.6pF typical I/O to GND
- Ultra low leakage: nA level
- Low operating voltage: 5.5V
- Uni-directional TVS Diode Array
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
- IEC61000 - 4 - 5 (Lightning) 3.3A (8/20 μs)
- IEC61000 - 4 - 4 (EFT) 80A (5/50ns)
- ROHS Compliant
