TECH PUBLICDatasheet (PDF)

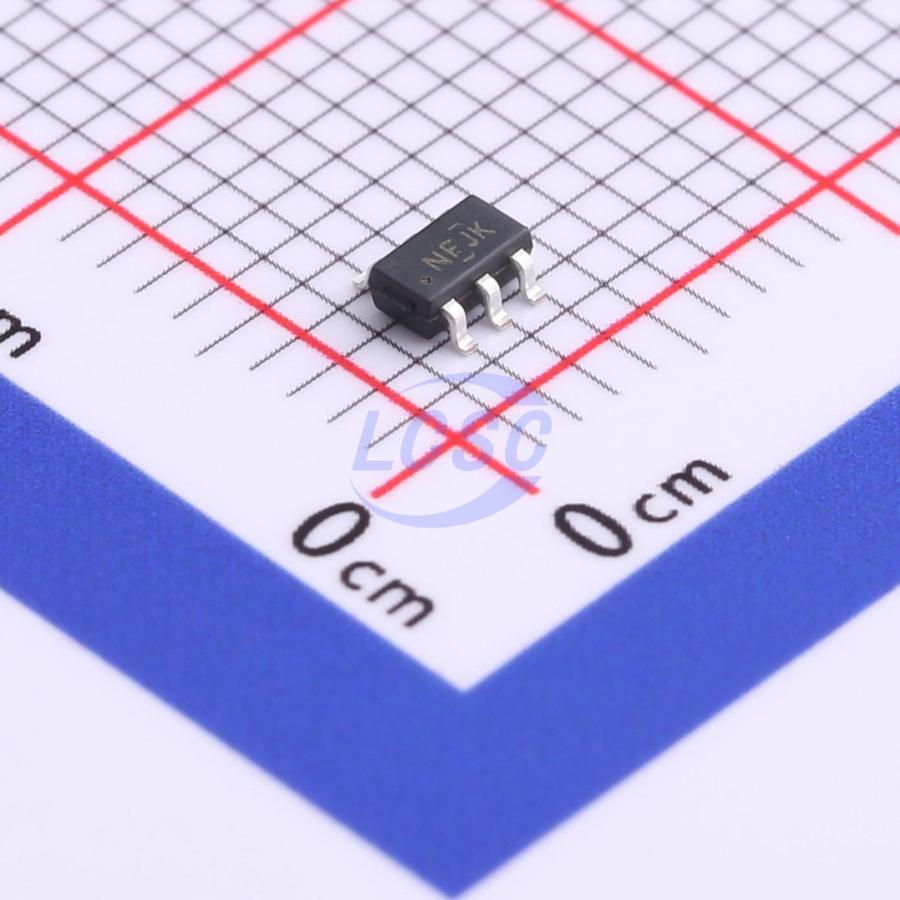

TPD4S009DBVR-TP
nan
SOT-23-6RoHSActive
5.5VWM 15VC SOT-23-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPD4S009DBVR-TP
- Store part #
- C2827619
- Package / case
- SOT-23-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,040 in stock
#C2827619
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.51 | ₹57.55 |
| 50+ | ₹9.22 | ₹461.00 |
| 150+ | ₹8.07 | ₹1,210.50 |
| 500+ | ₹7.21 | ₹3,605.00 |
| 3,000+ | ₹5.76 | ₹17,280.00 |
| 6,000+ | ₹5.40 | ₹32,400.00 |
5 × ₹11.51
₹57.55
excl. GST
₹67.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPD4S009DBVR-TP
₹57.55 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
Applications
- USB 2.0 and USB 3.0 Ports
- USB OTG
- Digital video interface (DVI)
- Monitor and Flat Panel Displays
- PCI Express and Serial SATA Ports
- Gigabit Ethernet
- IEEE 1394 firewire ports
- Consumer products (STB, DVD, DSC, DVC...)
Key features
- Ultralow capacitance: 1pF(Max)
- Ultra low leakage: nA level
- Low operating voltage: 5.5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
- IEC 61000 - 4 - 4 (EFT) 40A(5/50ns)
- ROHS Compliant
