TECH PUBLICDatasheet (PDF)

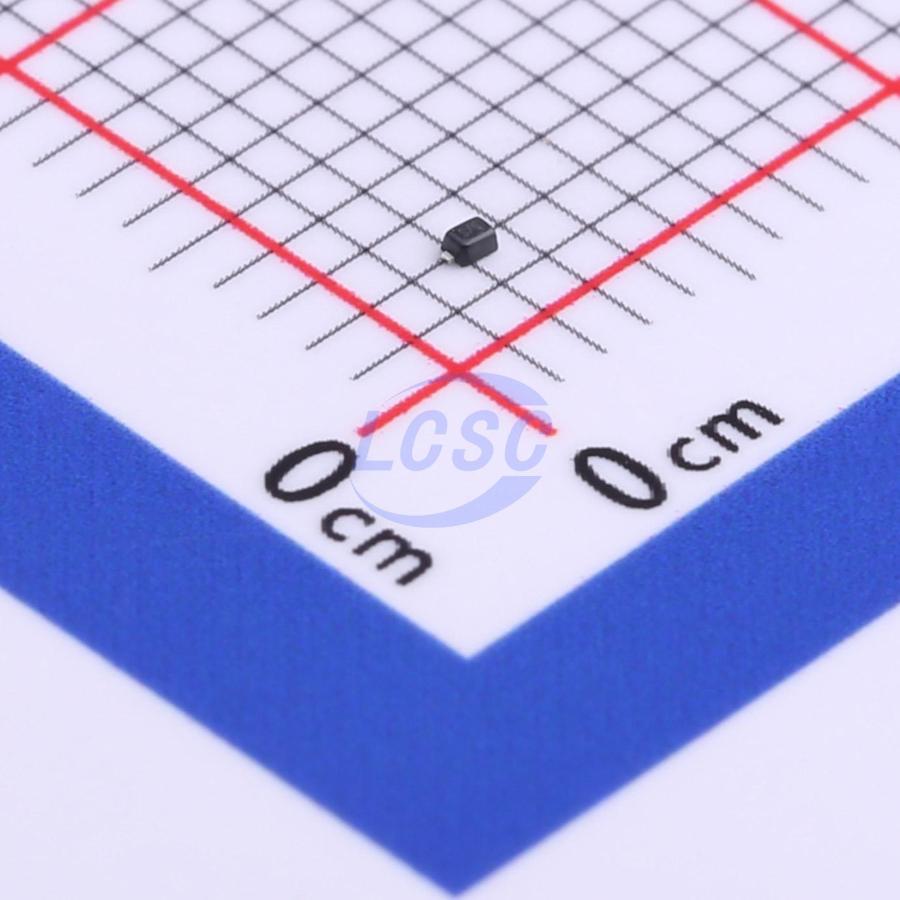

TPD5V0L1B2S9
9VC Clamp 7A@8/20us Ipp ESD DIODE SOD-923
SOD-923RoHSActive
ESD DIODE 5VWM 9VC SOD-923
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPD5V0L1B2S9
- Store part #
- C708744
- Package / case
- SOD-923
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,800 in stock
#C708744
Stock & price checked 17 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.99 | ₹99.80 |
| 200+ | ₹3.93 | ₹786.00 |
| 600+ | ₹3.35 | ₹2,010.00 |
| 2,000+ | ₹2.99 | ₹5,980.00 |
| 10,000+ | ₹2.37 | ₹23,700.00 |
| 20,000+ | ₹2.20 | ₹44,000.00 |
20 × ₹4.99
₹99.80
excl. GST
₹117.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TPD5V0L1B2S9
₹99.80 for 20 + GST
Specifications
- Clamping Voltage
- 9V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 7A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 60W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 8.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.045 g
Overview
Applications
- Cellular phones
- Portable devices
- Digital cameras
- Power supplies
Key features
- 60W peak pulse power per line (tp = 8/20μs)
- Replacement for MLV(0402)
- Bidirectional configurations
- Response time is typically < 1ns
- Low clamping voltage
- RoHS compliant
- Transient protection for data lines to IEC61000 - 4 - 2 (ESD) ±30KV (air), ±30KV (contact); IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
