TECH PUBLICDatasheet (PDF)

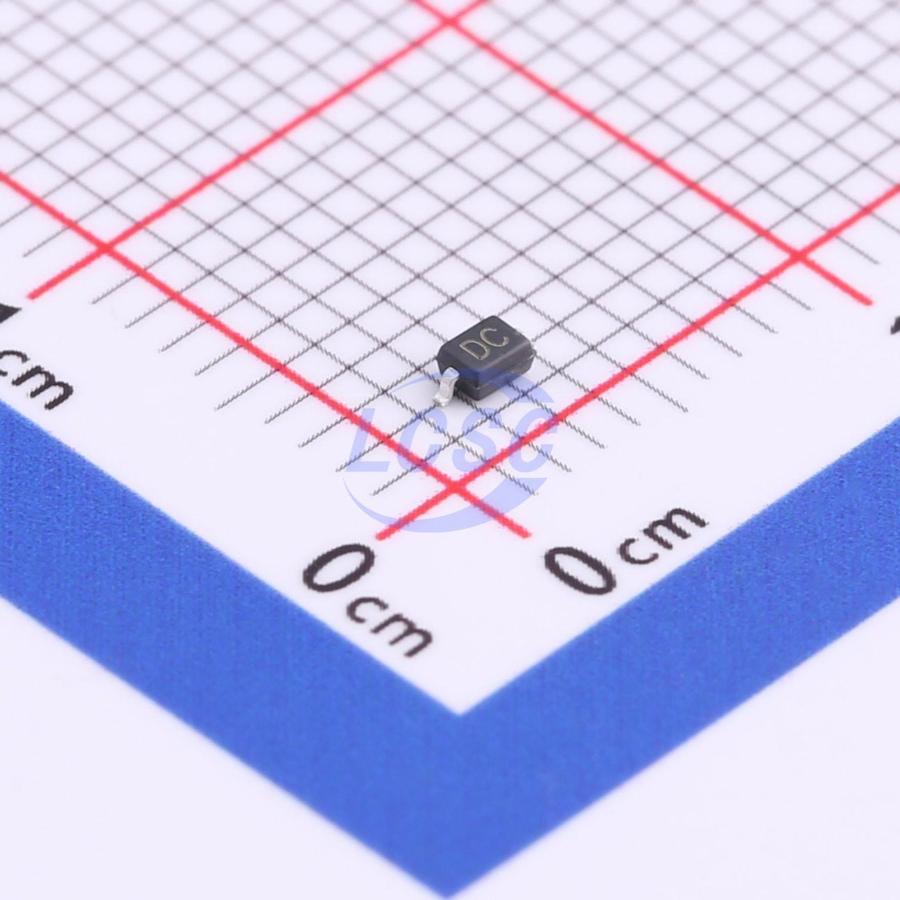

TPD9112W-2
29VC Clamp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 12VWM 29VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPD9112W-2
- Store part #
- C2835435
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,015 in stock
#C2835435
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.28 | ₹66.40 |
| 50+ | ₹10.69 | ₹534.50 |
| 150+ | ₹9.39 | ₹1,408.50 |
| 500+ | ₹8.41 | ₹4,205.00 |
| 3,000+ | ₹6.76 | ₹20,280.00 |
| 6,000+ | ₹6.36 | ₹38,160.00 |
5 × ₹13.28
₹66.40
excl. GST
₹78.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPD9112W-2
₹66.40 for 5 + GST
Specifications
- Clamping Voltage
- 29V;13V
- Peak Pulse Power Dissipation (Ppp)
- 330W@8/20us
- Number of Channels
- 1
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals
Key features
- 330W peak pulse power (8/20μs)
- Low operating: 12V
- Ultra low capacitance: 1.0 pF typical
- Ultra low leakage: nA level
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- RoHS Compliant
