TECH PUBLIC

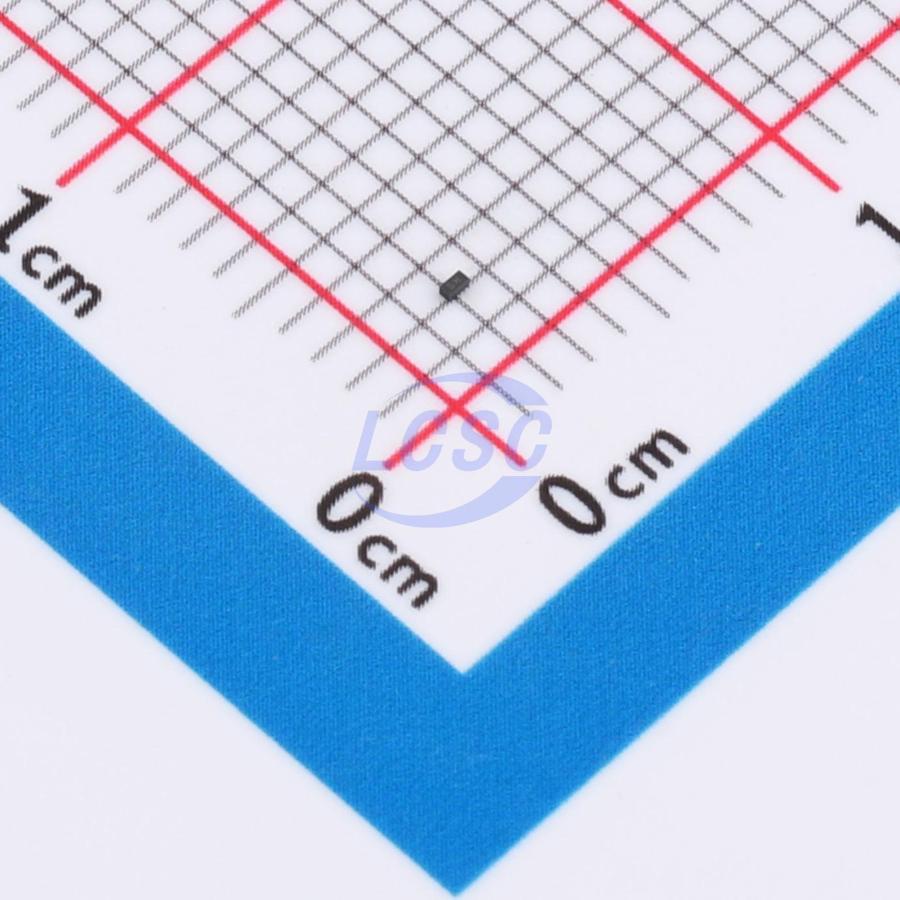

TPDESD0V8Z1BCSF

3.5V 4A@8/20us 14W@8/20us 2V Bidirectional 800mV DFN0603-2 TVS Diodes

DFN0603-2RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPDESD0V8Z1BCSF
Store part #: C52098225
Package / case: DFN0603-2
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

770 in stock

#C52098225

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹7.96	₹79.60
100+	₹6.27	₹627.00
300+	₹5.41	₹1,623.00
1,000+	₹4.78	₹4,780.00
5,000+	₹4.27	₹21,350.00
10,000+	₹4.01	₹40,100.00

Quantity (min 10, multiples of 10)

10 × ₹7.96

₹79.60

excl. GST

₹93.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

TPDESD0V8Z1BCSF

₹79.60 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 3.5V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 4A@8/20us
Peak Pulse Power Dissipation (Ppp): 14W@8/20us
Number of Channels: 1
Voltage - Breakdown: 2V
type: ESD
Reverse Leakage Current (Ir): 100nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 800mV

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.005 g

Overview

Applications

Mobile phones and accessories
Personal digital assistants
Laptops and handheld devices
USB Type-C interfaces
USB 3.1/3.2 interfaces

Key features

Low operating voltage: 0.8V
Ultra-low capacitance: 0.2pF (typical)
Ultra-low leakage: nA-level
Low clamping voltage
IEC 61000-4-2 (ESD) immunity test Air discharge: ±15kV
IEC 61000-4-2 (ESD) immunity test Contact discharge: ±12kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Surge) 4A (8/20μs)
2-pin leadless package
Lead-free devices
Typical response time < 1 ns
