TECH PUBLICDatasheet (PDF)

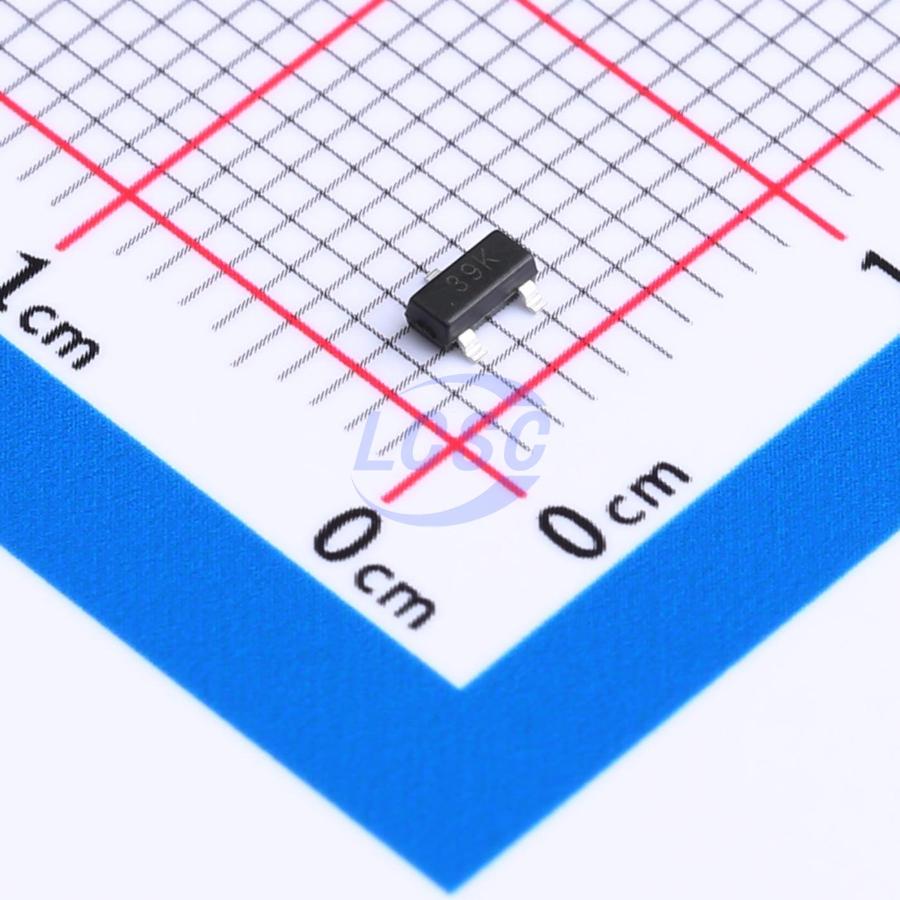

TPDMP2004K-7
20V 0.66A 350mW Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 20V 0.66A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPDMP2004K-7
- Store part #
- C5246380
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,720 in stock
#C5246380
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.23 | ₹52.30 |
| 100+ | ₹4.17 | ₹417.00 |
| 300+ | ₹3.64 | ₹1,092.00 |
| 3,000+ | ₹2.94 | ₹8,820.00 |
| 6,000+ | ₹2.62 | ₹15,720.00 |
| 9,000+ | ₹2.46 | ₹22,140.00 |
10 × ₹5.23
₹52.30
excl. GST
₹61.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPDMP2004K-7
₹52.30 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 15pF
- Ciss-Input Capacitance
- 170pF
- Pd - Power Dissipation
- 350mW
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 660mA
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 520mΩ@4.5V
- Number
- 1 P-Channel
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 450mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
This next-generation N-channel enhancement-mode MOSFET is designed to minimize on-resistance RDS(ON) while maintaining superior switching performance. The device is ideal for power management and load switching applications.
Applications
- Load/Power Switch - Interface Switch - Logic Level Translation
Key features
- Rated temperature up to +175°C for high-temperature environments
- 100% Unclamped Inductive Switching (UIS) tested during production for enhanced reliability and durability in end applications
- High conversion efficiency
- Low on-resistance RDS(ON) for minimized conduction losses
- Low input capacitance
- Fast switching speed
- Solderable flanks for optical inspection
- Lead-free finish, RoHS compliant
- Halogen-free and antimony-free "green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDV304P#C7419961TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 7,190 | ₹5.72 · 7,190 in stock | View |
 | NDS332P#C7472856TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,150 | ₹8.15 · 3,150 in stock | View |
 | FDV302P#C41348175TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 4,110 | ₹5.62 · 4,110 in stock | View |
 | SI2323DS#C5182044TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 68,135 | ₹8.44 · 68,135 in stock | View |
 | FDN302P#C7472913TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 190 | ₹5.76 · 190 in stock | View |
