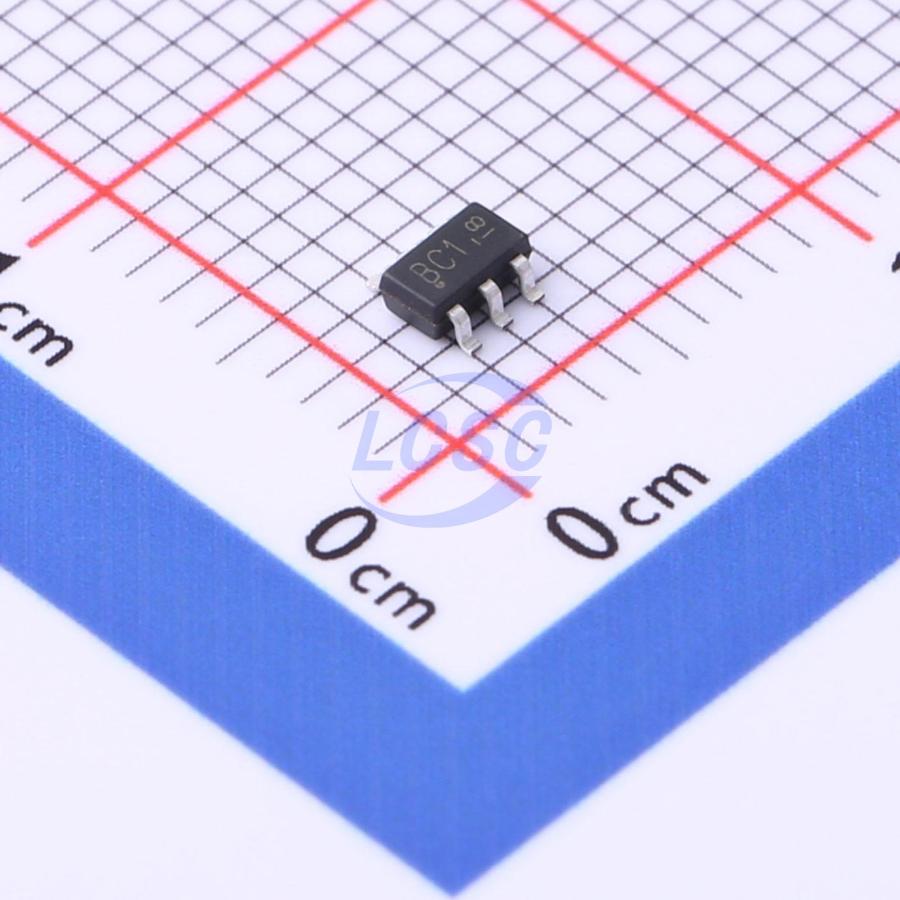

TECH PUBLIC

TPDT1042-04SO-7

nan

SOT-23-6RoHSActive

5VWM 13VC SOT-23-6

Manufacturer: TECH PUBLIC
Manufacturer part #: TPDT1042-04SO-7
Store part #: C2844726
Package / case: SOT-23-6
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,850 in stock

#C2844726

Stock & price checked 15 days ago

Quantity	Unit price	Pack price
10+	₹8.35	₹83.50
100+	₹6.67	₹667.00
300+	₹5.83	₹1,749.00
3,000+	₹4.76	₹14,280.00
6,000+	₹4.26	₹25,560.00
9,000+	₹4.01	₹36,090.00

Quantity (min 10, multiples of 10)

10 × ₹8.35

₹83.50

excl. GST

₹98.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPDT1042-04SO-7

₹83.50 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 13V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 6A@8/20us
Peak Pulse Power Dissipation (Ppp): 300W@8/20us
Voltage - Breakdown: 6V
Reverse Leakage Current (Ir): 80nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.033 g

Overview

Applications

USB2.0 and USB3.0 Ports
USB OTG
Digital video interface (DVI)
Monitor and Flat Panel Displays
PCI Express and Serial SATA Ports
Gigabit Ethernet
IEEE 1394 firewire ports
Consumer products (STB, DVD, DSC, DVC...)

Key features

Ultra low capacitance: 0.3pF typical (I/O to I/O)
Ultra low leakage: nA level
Low operating voltage: 5V
Low clamping voltage
Up to 4 data lines and one power line protects
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±27kV Contact discharge: ±25kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning): 6 A(8/20μs)
ROHS Compliant
