TECH PUBLIC

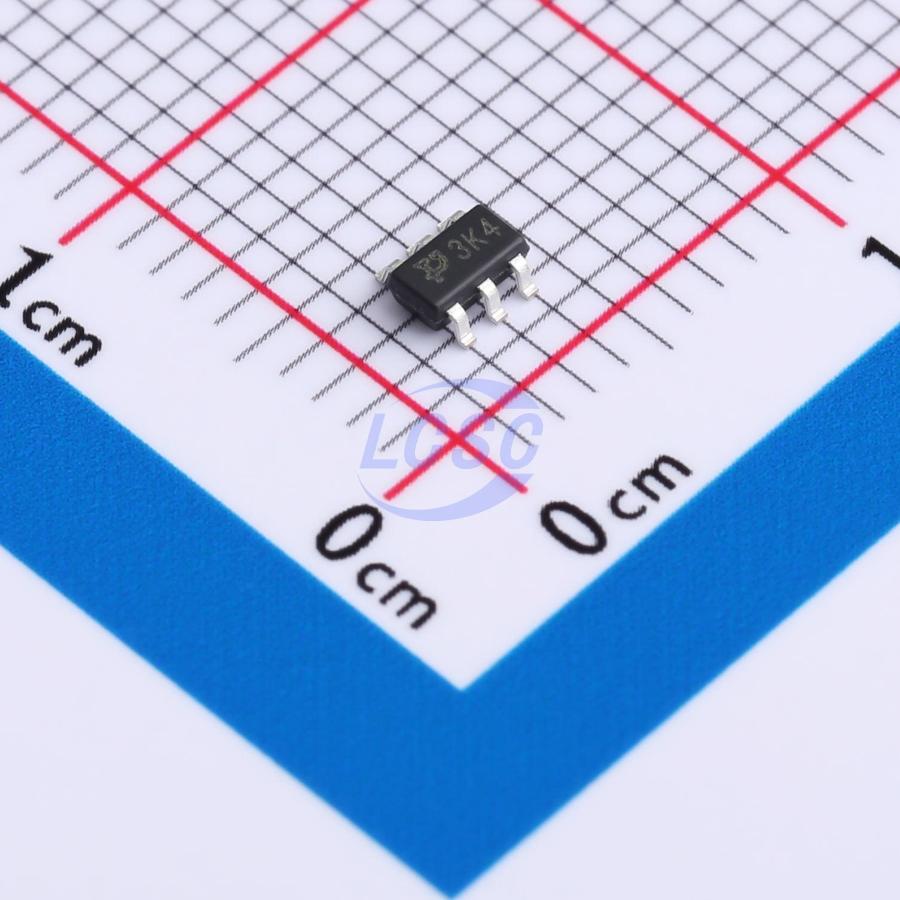

TPE03K4S6

15V 20A@8/20us 350W@8/20us 5V Bidirectional 3.3V SOT-23-6 TVS Diodes

SOT-23-6RoHSActive

Uni-directional 4-Line ESD Protection

Manufacturer: TECH PUBLIC
Manufacturer part #: TPE03K4S6
Store part #: C5126001
Package / case: SOT-23-6
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,825 in stock

#C5126001

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹17.86	₹89.30
50+	₹14.42	₹721.00
150+	₹12.70	₹1,905.00
500+	₹11.40	₹5,700.00
3,000+	₹9.19	₹27,570.00
6,000+	₹8.68	₹52,080.00

Quantity (min 5, multiples of 5)

5 × ₹17.86

₹89.30

excl. GST

₹105.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPE03K4S6

₹89.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 15V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 20A@8/20us
Peak Pulse Power Dissipation (Ppp): 350W@8/20us
Number of Channels: 2
Voltage - Breakdown: 5V
type: ESD
Reverse Leakage Current (Ir): 100nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

Applications

Mobile phone handsets
Personal Digital Assistants (PDA)
Portable handheld equipment (Laptop, Palmtop computers)
Computer port, keyboard (USB1.1)

Key features

350w peak pulse power(8/20us)
Protects one bi-directional or two uni-directional lines
Ultra low leakage: nA level
Operating voltage: 3.3V
Low clamping voltage
Complies with following standards:
IEC 61000-4-2(ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-4(EFT)40A (5/50ns)
IEC61000-4-5 (Lightning) 20A (8/20μs)
RoHS compliant
