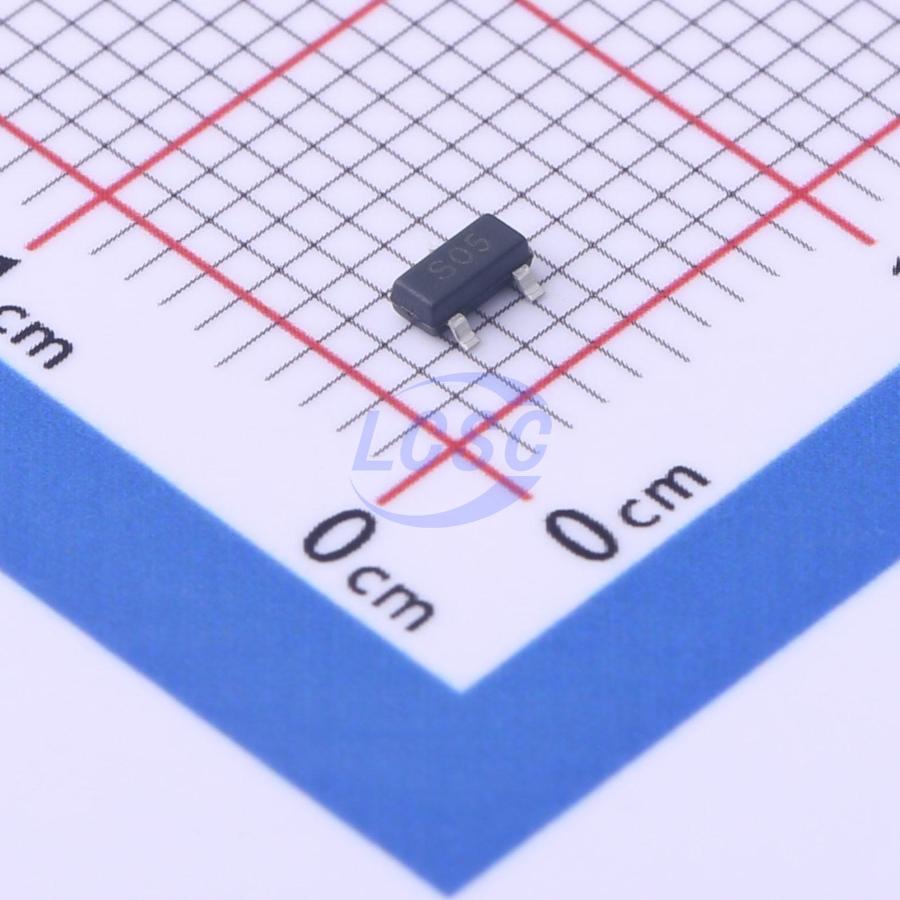

TECH PUBLIC

TPE05U2S3

20VC Clamp 27A@8/20us Ipp ESD DIODE SOT-23

SOT-23RoHSActive

ESD DIODE 5VWM 20VC SOT-23

Manufacturer: TECH PUBLIC
Manufacturer part #: TPE05U2S3
Store part #: C2841405
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,850 in stock

#C2841405

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
10+	₹7.96	₹79.60
100+	₹6.40	₹640.00
300+	₹5.62	₹1,686.00
3,000+	₹4.50	₹13,500.00
6,000+	₹4.04	₹24,240.00
9,000+	₹3.80	₹34,200.00

Quantity (min 10, multiples of 10)

10 × ₹7.96

₹79.60

excl. GST

₹93.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPE05U2S3

₹79.60 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 20V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 27A@8/20us
Peak Pulse Power Dissipation (Ppp): 350W@8/20us
Number of Channels: 2
Voltage - Breakdown: 6V
type: ESD
Reverse Leakage Current (Ir): 100nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.317 g

Overview

Applications

Cellular Handsets and Accessories
Notebooks and Handhelds
Portable Instrumentation
Set Top Box
Industrial Controls

Key features

350w peak pulse power(8/20us)
Protects one bi-directional or two uni-directional lines
Ultra low leakage: nA level
Operating voltage: 5V
Low clamping voltage
Complies with following standards:
IEC61000-4-2(ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 27A (8/20μs)
RoHS Compliant
