TECH PUBLICDatasheet (PDF)

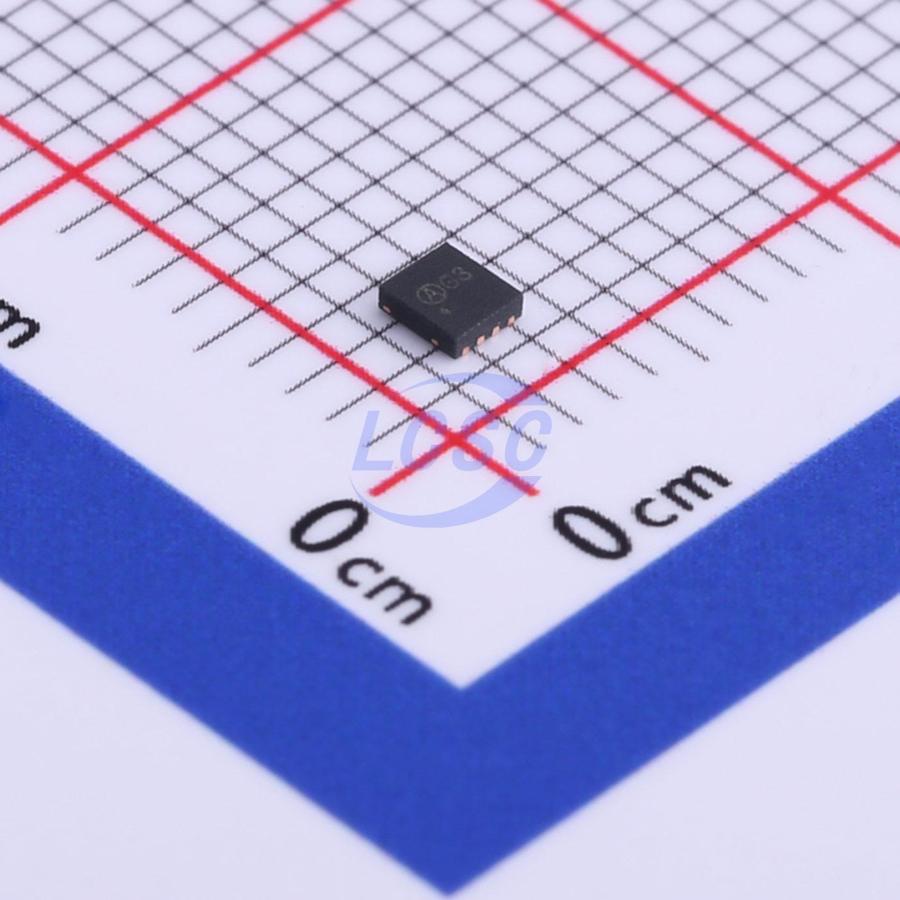

TPE1255D6
28VC Clamp 160A@8/20us Ipp ESD DIODE DFN2018-6-EP
DFN2018-6-EPRoHSActive
ESD DIODE 13.5VWM 28VC DFN2018-6-EP
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPE1255D6
- Store part #
- C521929
- Package / case
- DFN2018-6-EP
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,085 in stock
#C521929
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.71 | ₹128.55 |
| 50+ | ₹20.78 | ₹1,039.00 |
| 150+ | ₹18.67 | ₹2,800.50 |
| 500+ | ₹16.03 | ₹8,015.00 |
| 3,000+ | ₹13.30 | ₹39,900.00 |
| 6,000+ | ₹12.59 | ₹75,540.00 |
5 × ₹25.71
₹128.55
excl. GST
₹151.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPE1255D6
₹128.55 for 5 + GST
Specifications
- Clamping Voltage
- 28V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 160A@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 14.5V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 13.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
Applications
- Protection for the Vbus Circuit on USB2.0 Fast Charging
Key features
- Protection for Vbus operating up to 13.5V
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 80A (5/50ns)
- IEC61000-4-5 (Lightning) 160A (8/20μs)
- RoHS Compliant
