TECH PUBLICDatasheet (PDF)

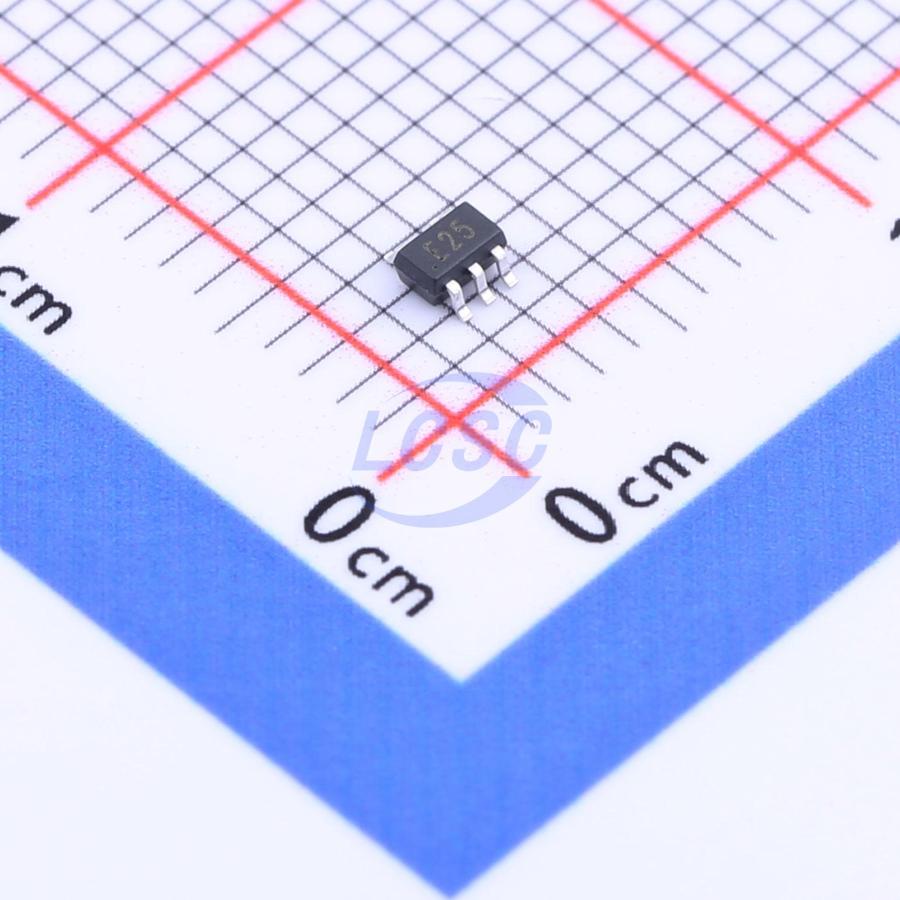

TPE24H4C5
nan
SOT-353RoHSActive
24VWM 43VC SOT-353
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPE24H4C5
- Store part #
- C2931116
- Package / case
- SOT-353
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,380 in stock
#C2931116
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.13 | ₹55.65 |
| 50+ | ₹10.91 | ₹545.50 |
| 150+ | ₹10.77 | ₹1,615.50 |
| 500+ | ₹10.62 | ₹5,310.00 |
5 × ₹11.13
₹55.65
excl. GST
₹65.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPE24H4C5
₹55.65 for 5 + GST
Specifications
- Clamping Voltage
- 43V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 25V
- Number of Channels
- Four channels
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
Applications
- Portable Instrumentation
- Microprocessor Based Equipmenmt
- Cell Phone Handsets and Accessories
- Personal Digital Assistants (PDAs) and Pagers
Key features
- Working voltage: 24V
- Low clamping voltage
- Protects four I/O lines
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±15KV Contact discharge: ±8KV
- IEC61000 - 4 - 5 (Lightning) 2A (8/20 μs)
- IEC61000 - 4 - 4 (EFT) 40A（5/50ns)
- RoHS Compliant
