TECH PUBLICDatasheet (PDF)

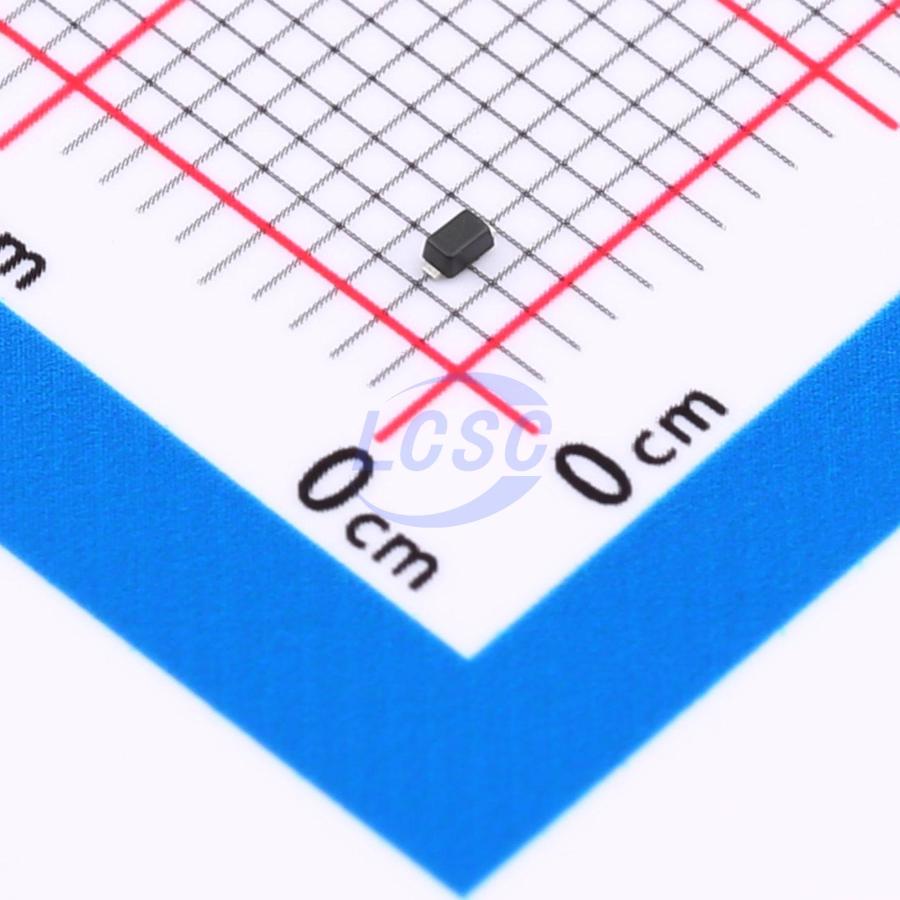

TPE24VU8A-523
45VC Clamp 8A@8/20us Ipp SOD-523
SOD-523RoHSActive
24VWM 45VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPE24VU8A-523
- Store part #
- C23380912
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,000 in stock
#C23380912
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.88 | ₹48.80 |
| 100+ | ₹3.82 | ₹382.00 |
| 300+ | ₹3.29 | ₹987.00 |
| 3,000+ | ₹2.90 | ₹8,700.00 |
| 6,000+ | ₹2.58 | ₹15,480.00 |
| 9,000+ | ₹2.42 | ₹21,780.00 |
10 × ₹4.88
₹48.80
excl. GST
₹57.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPE24VU8A-523
₹48.80 for 10 + GST
Specifications
- Clamping Voltage
- 45V
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 300W@8/20us
- Voltage - Breakdown
- 26V
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.011 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
Key features
- Low operating voltage: 24V
- Ultra low capacitance: 50pF Max
- Ultra low leakage: nA level
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 8A (8/20μs)
- These are Pb-Free Devices
- Response Time is Typically <1 ns
