TECH PUBLICDatasheet (PDF)

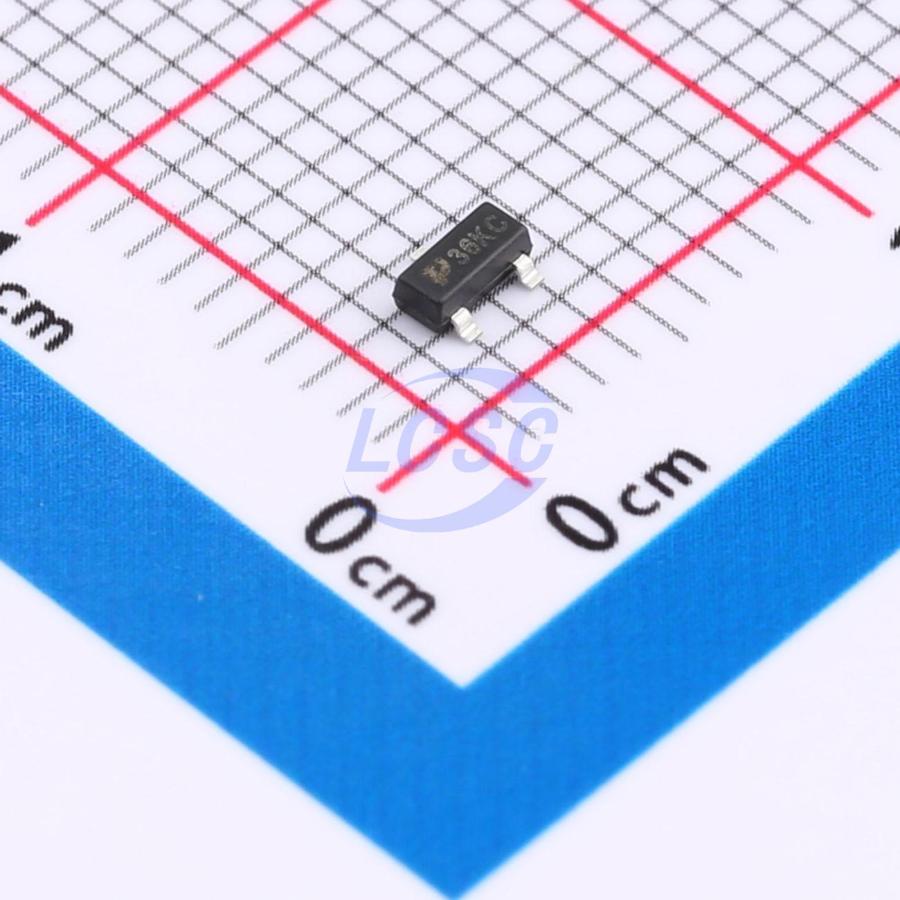

TPE36KCANS3
65VC Clamp 4A@8/20us Ipp ESD DIODE SOT-23
SOT-23RoHSActive
ESD DIODE 36VWM 65VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPE36KCANS3
- Store part #
- C2931122
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,240 in stock
#C2931122
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.40 | ₹102.00 |
| 50+ | ₹16.64 | ₹832.00 |
| 150+ | ₹14.76 | ₹2,214.00 |
| 500+ | ₹13.35 | ₹6,675.00 |
| 3,000+ | ₹10.29 | ₹30,870.00 |
| 6,000+ | ₹9.72 | ₹58,320.00 |
5 × ₹20.40
₹102.00
excl. GST
₹120.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPE36KCANS3
₹102.00 for 5 + GST
Specifications
- Clamping Voltage
- 65V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 250W@8/20us
- Voltage - Breakdown
- 39.5V
- Number of Channels
- 2
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Mobile phones and accessories
- Laptops and handheld devices
- Portable instruments
- Set-top boxes
- Industrial control
- CAN bus protection
- Automotive applications
Key features
- 400W peak pulse power (8/20μs)
- Protects two bidirectional lines
- Ultra-low leakage: nanoampere level
- Working voltage: 36V
- Low clamping voltage
- Compliant with the following standards:
- IEC 61000-4-2 (ESD) immunity test: air discharge ±30kV, contact discharge ±30kV
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning Surge) 4A (8/20μs)
- RoHS compliant
- Package: SOT-23
- Lead finish: matte tin
- Molding compound: "green" molding compound
- UL flammability rating: 94V-0
- Moisture sensitivity level: Level 3 per J-STD-020
- Packaging quantity: 3000 pcs/7-inch tape reel
Alternatives
Similar parts — check the datasheet before substituting.
