TECH PUBLIC

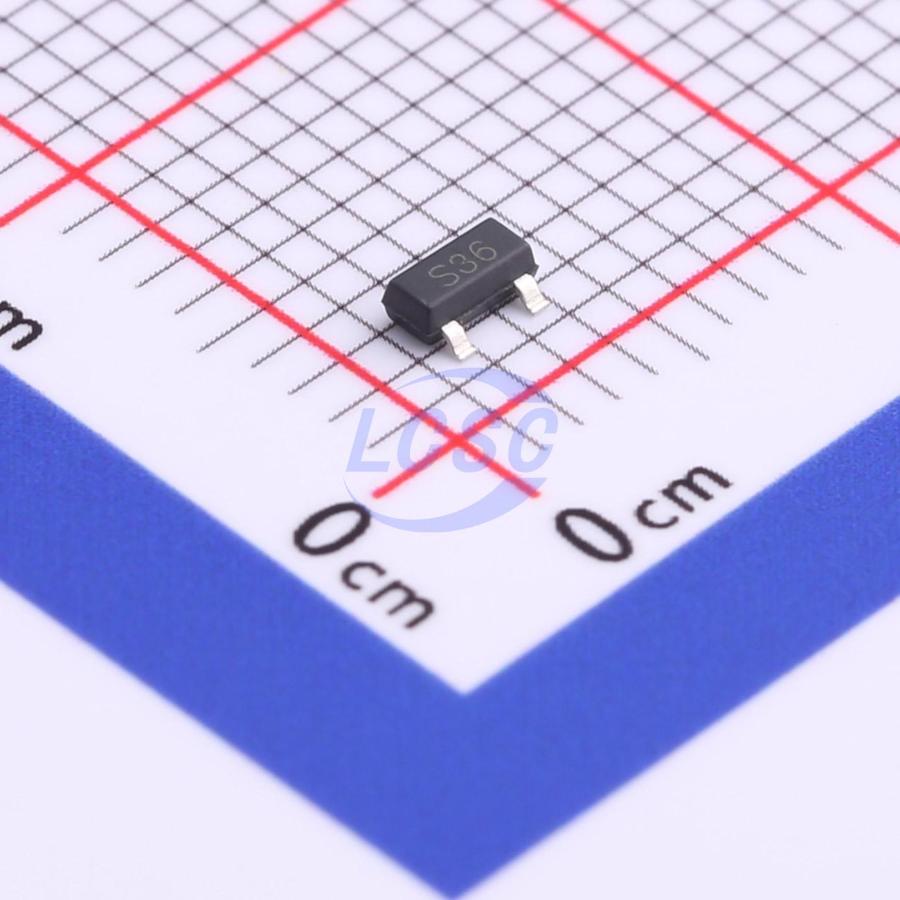

TPE36U2S3

37VC 60VC Clamp 4A@8/20us Ipp ESD DIODE SOT-23

SOT-23RoHSActive

ESD DIODE 36VWM 37VC 60VC SOT-23

Manufacturer: TECH PUBLIC
Manufacturer part #: TPE36U2S3
Store part #: C2827622
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,120 in stock

#C2827622

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
5+	₹12.18	₹60.90
50+	₹9.78	₹489.00
150+	₹8.59	₹1,288.50
500+	₹7.67	₹3,835.00
3,000+	₹6.14	₹18,420.00
6,000+	₹5.77	₹34,620.00

Quantity (min 5, multiples of 5)

5 × ₹12.18

₹60.90

excl. GST

₹71.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPE36U2S3

₹60.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 60V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 4A@8/20us
Peak Pulse Power Dissipation (Ppp): 240W@8/20us
Voltage - Breakdown: 39.5V
Number of Channels: 2
type: TVS
Polarity: Bidirectional
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.035 g

Overview

Applications

Cellular Handsets and Accessories
Notebooks and Handhelds
Portable Instrumentation
Set Top Box
Industrial Controls

Key features

240w peak pulse power(8/20μs)
Protects one bi-directional or two uni-directional lines
Ultra low leakage: nA level
Operating voltage: 36V
Low clamping voltage
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 4A (8/20μs)
RoHS Compliant
