TECH PUBLICDatasheet (PDF)

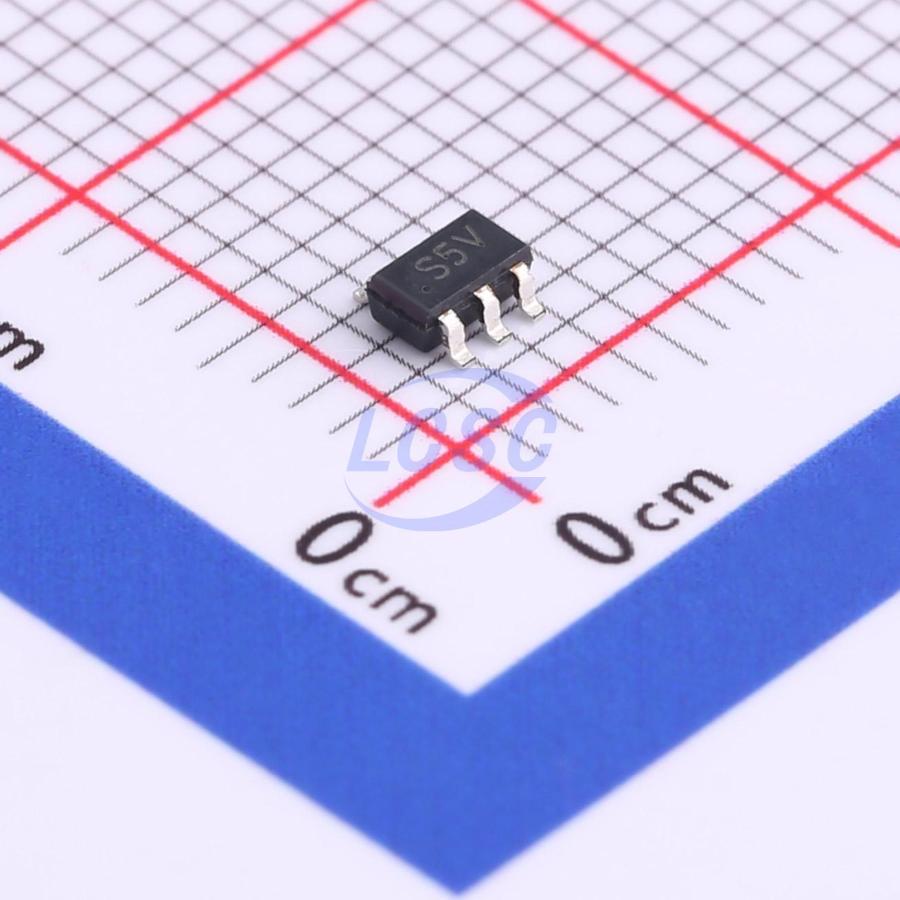

TPE4004BS5
nan
SOT-23-5RoHSActive
5VWM 10VC SOT-23-5
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPE4004BS5
- Store part #
- C2835444
- Package / case
- SOT-23-5
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,600 in stock
#C2835444
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.16 | ₹130.80 |
| 50+ | ₹20.97 | ₹1,048.50 |
| 150+ | ₹18.75 | ₹2,812.50 |
| 500+ | ₹15.97 | ₹7,985.00 |
| 3,000+ | ₹12.74 | ₹38,220.00 |
| 6,000+ | ₹12.00 | ₹72,000.00 |
5 × ₹26.16
₹130.80
excl. GST
₹154.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPE4004BS5
₹130.80 for 5 + GST
Specifications
- Clamping Voltage
- 6V;10V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 80W@8/20us
- Voltage - Breakdown
- 8.4V
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
Applications
- Cell phone Handsets and Accessories
- Microprocessor Based Equipment
- Personal Digital Assistants (PDA’s)
- Notebooks, Desktops, and Servers
- Portable Instrumentation
- Set Top Box
Key features
- Ultra low capacitance: 15pF typical
- Ultra low leakage: nA level
- Low operating voltage: ±5V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 8A (8/20μs)
- RoHS Compliant
- Lead Finish: NiPdAu
