TECH PUBLICDatasheet (PDF)

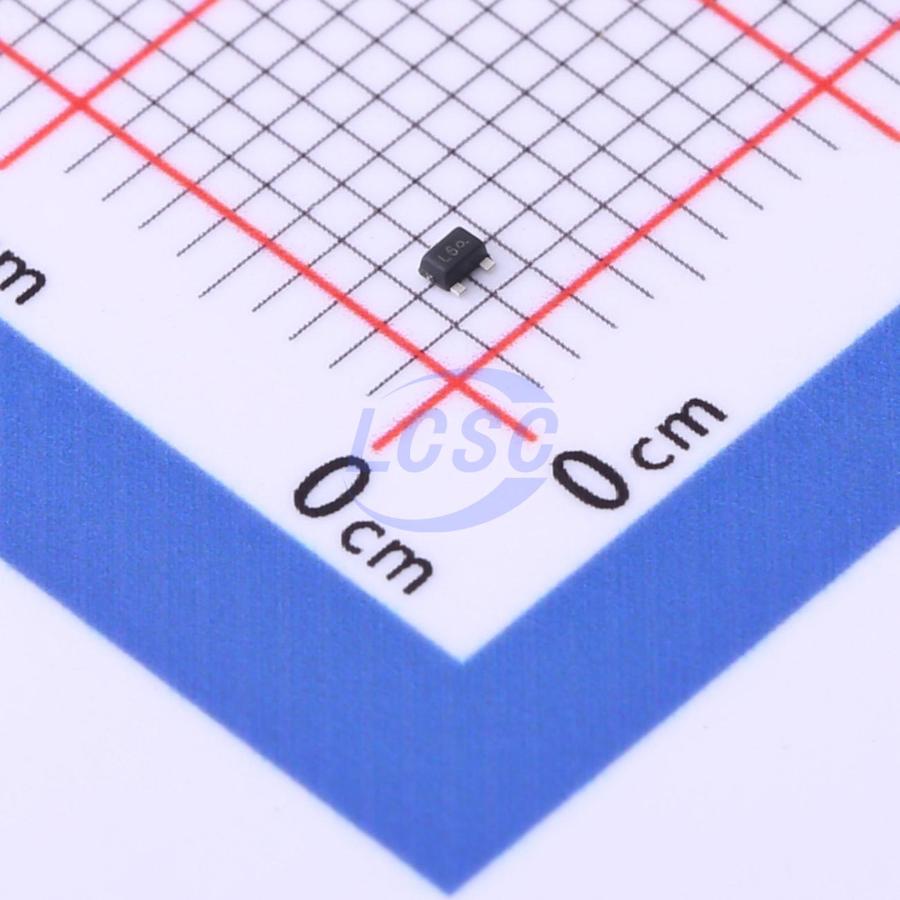

TPE7205RX3-A
18VC Clamp TVS DIODE SOT-723
SOT-723RoHSActive
TVS DIODE 5.5VWM 18VC SOT-723
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPE7205RX3-A
- Store part #
- C2844715
- Package / case
- SOT-723
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,950 in stock
#C2844715
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.73 | ₹163.65 |
| 50+ | ₹26.16 | ₹1,308.00 |
| 150+ | ₹23.34 | ₹3,501.00 |
| 500+ | ₹19.82 | ₹9,910.00 |
| 2,500+ | ₹16.14 | ₹40,350.00 |
| 5,000+ | ₹15.20 | ₹76,000.00 |
5 × ₹32.73
₹163.65
excl. GST
₹193.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
TPE7205RX3-A
₹163.65 for 5 + GST
Specifications
- Clamping Voltage
- 18V
- Peak Pulse Power Dissipation (Ppp)
- 50W@8/20us
- Voltage - Breakdown
- 7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Overview
Applications
- Notebooks
- Set-top boxes
- DVD players
- Media players
- Portable computers
Key features
- Supports USB 3.0 data rates (5 Gbps)
- Ultra low capacitance: 0.4pF typical I/O to GND
- Ultra low leakage: nA level
- Low operating voltage: 5.5V
- Uni-directional TVS Diode Array
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±20 kV Contact discharge: ±18 kV
- IEC61000-4-5 (Lightning) 3.3A (8/20 μs)
- IEC61000-4-4 (EFT) 40A (5/50ns)
- ROHS Compliant
