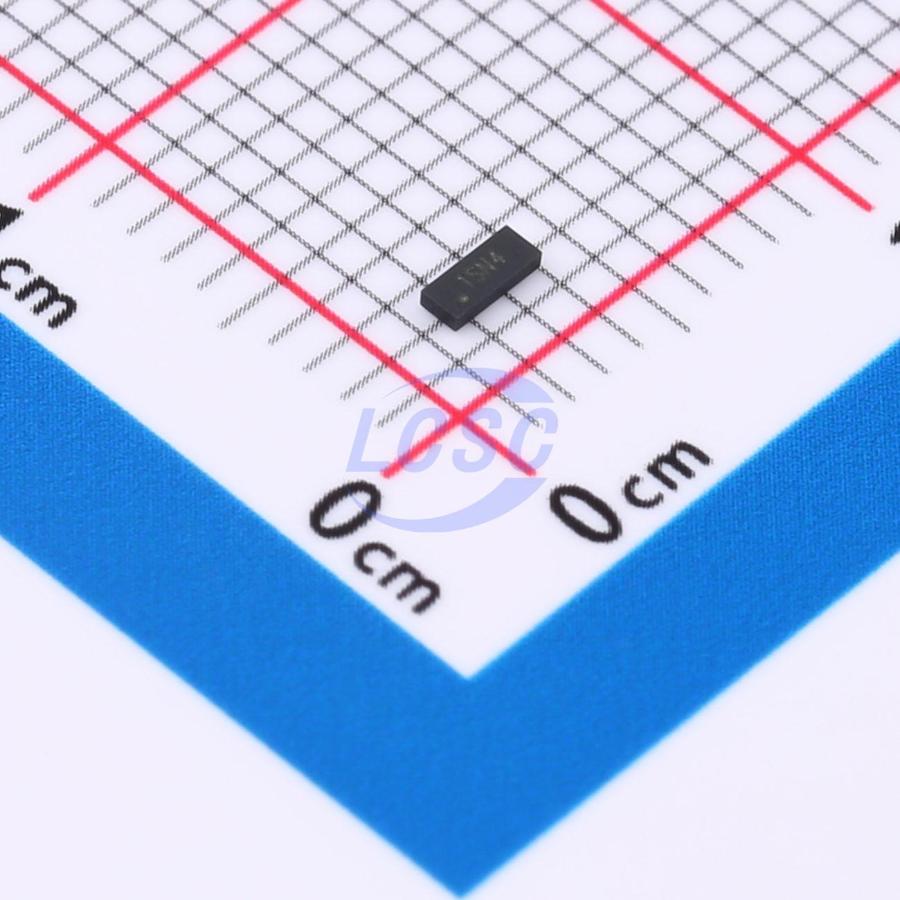

TECH PUBLIC

TPESD01N4P

1.85VC 3.2VC Clamp 4.5A Ipp DFN2510-10

DFN2510-10RoHSActive

1.5VWM 1.85VC 3.2VC DFN2510-10

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD01N4P
Store part #: C42370555
Package / case: DFN2510-10
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,080 in stock

#C42370555

Stock & price checked 14 days ago

Quantity	Unit price	Pack price
5+	₹21.82	₹109.10
50+	₹19.17	₹958.50
150+	₹18.05	₹2,707.50
500+	₹16.63	₹8,315.00
2,500+	₹16.01	₹40,025.00
5,000+	₹15.62	₹78,100.00

Quantity (min 5, multiples of 5)

5 × ₹21.82

₹109.10

excl. GST

₹128.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPESD01N4P

₹109.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 3.2V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 4.5A
Peak Pulse Power Dissipation (Ppp): 13W@8/20us
Number of Channels: Four channels
Voltage - Breakdown: 3V
type: ESD
Polarity: Bidirectional
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 1.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.026 g

Overview

Applications

USB 3.1 & 3.2 and MDDI ports
PCI express and Serial SATA Ports
Notebook Computers
Tablets

Key features

4 Bi-directional Channels ESD protection
Typically Used at High Speed Ports
Low operating voltage: 1.5V
Low Channel Input Capacitance of 0.13pF Typical for I/Os (Typ)
IEC 61000-4-2 (ESD) immunity test Air discharge: ±15KV Contact discharge: ±12kV
IEC61000-4-4 (EFT) 40A (5/50ns)
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green" Device

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	ESDSBULC0104DFN10-TP#C52098197TECH PUBLIC · DFN2510-10	TECH PUBLIC	DFN2510-10	200	₹27.49 · 200 in stock	View
