TECH PUBLIC

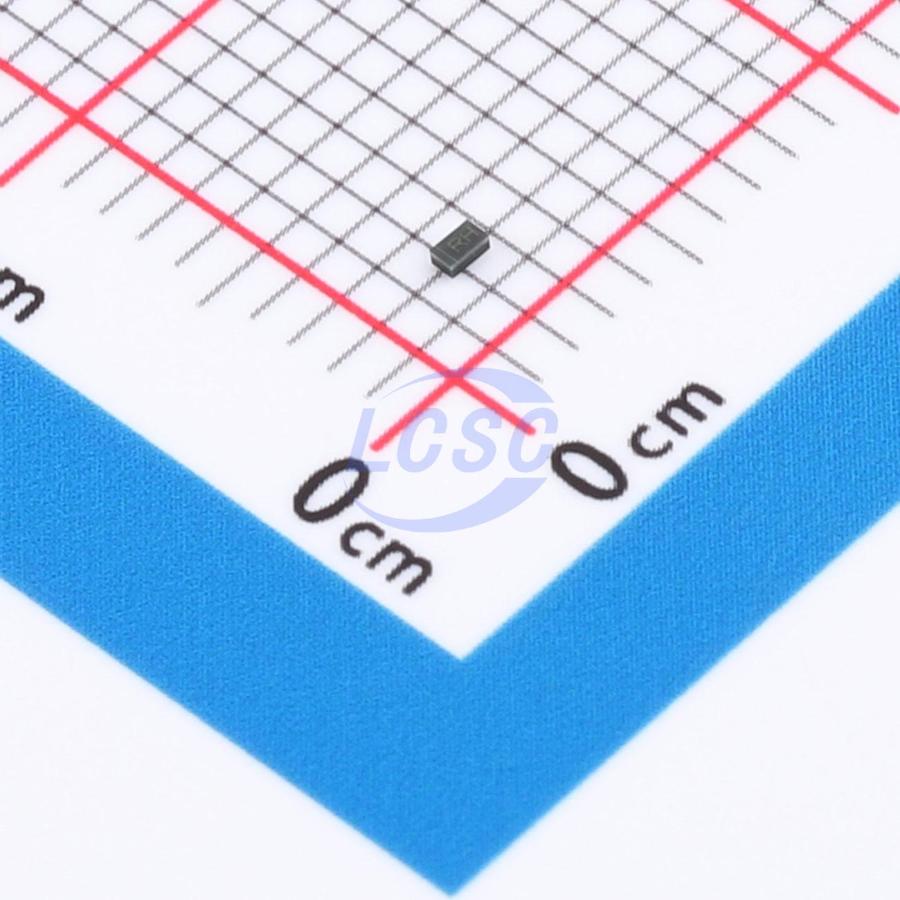

TPESD03B8AP

10V 8A@8/20us 80W@8/20us 3.6V Bidirectional 3.3V DFN1006-2 TVS Diodes

DFN1006-2RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD03B8AP
Store part #: C52145955
Package / case: DFN1006-2
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,080 in stock

#C52145955

Stock & price checked 16 days ago

Quantity	Unit price	Pack price
20+	₹2.67	₹53.40
200+	₹2.08	₹416.00
600+	₹1.75	₹1,050.00
2,000+	₹1.53	₹3,060.00
10,000+	₹1.36	₹13,600.00
20,000+	₹1.27	₹25,400.00

Quantity (min 20, multiples of 20)

20 × ₹2.67

₹53.40

excl. GST

₹63.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

TPESD03B8AP

₹53.40 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 10V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 8A@8/20us
Peak Pulse Power Dissipation (Ppp): 80W@8/20us
Number of Channels: 1
Voltage - Breakdown: 3.6V
type: ESD
Reverse Leakage Current (Ir): 100nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.092 g

Overview

Applications

Mobile phones & accessories
Personal digital assistants
Laptops & handheld devices
Portable instruments
Peripheral devices

Key features

Low operating voltage: 3.3V
Ultra-low capacitance: 15pF (typical)
Ultra-low leakage: nanoamp-level
Low clamping voltage
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV
Contact discharge: ±30kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning) 8A (8/20μs)
2-pin leadless package
Lead-free devices
Typical response time < 1 ns
