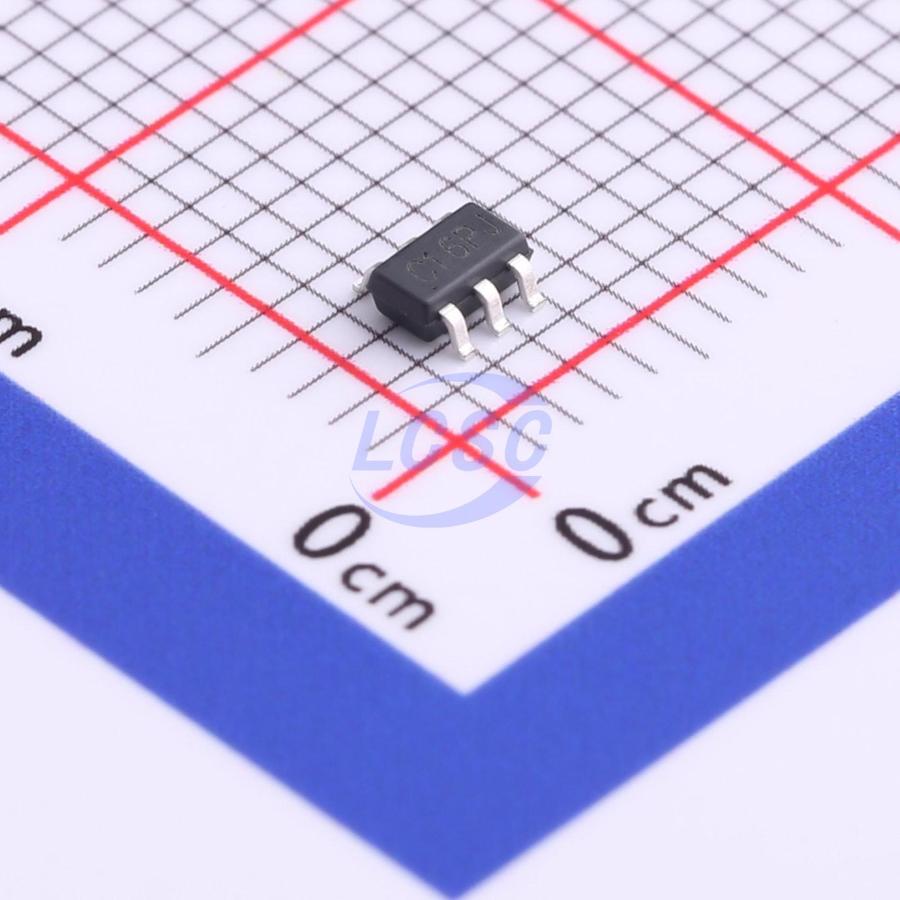

TECH PUBLIC

TPESD0514S6-A

nan

SOT-23-6RoHSActive

5VWM SOT-23-6

Manufacturer: TECH PUBLIC
Manufacturer part #: TPESD0514S6-A
Store part #: C2827624
Package / case: SOT-23-6
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,730 in stock

#C2827624

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
5+	₹12.67	₹63.35
50+	₹10.28	₹514.00
150+	₹9.08	₹1,362.00
500+	₹8.18	₹4,090.00
3,000+	₹6.63	₹19,890.00
6,000+	₹6.27	₹37,620.00

Quantity (min 5, multiples of 5)

5 × ₹12.67

₹63.35

excl. GST

₹74.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPESD0514S6-A

₹63.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 15V
Peak Pulse Power Dissipation (Ppp): 300W@8/20us
Number of Channels: Four channels
Voltage - Breakdown: 6V
type: ESD
Polarity: Unidirectional
Reverse Leakage Current (Ir): 80nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.24 g

Overview

Applications

USB 2.0 and USB 3.0 Ports USB OTG
Digital video interface(DVI)
Monitor and Flat Panel Displays
PCI Express and Serial SATA Ports
Gigabit Ethernet
IEEE 1394 firewire ports
Consumer products (STB, DVD, DSC, DVC...)

Key features

Ultra low capacitance: 0.3pF typical (I/O to I/O)
Ultra low leakage: nA level
Low operating voltage: 5V
Low clamping voltage
Up to 4 data lines and one power line protects
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) : 4.7A(8/20μs)
ROHS Compliant
