TECH PUBLICDatasheet (PDF)

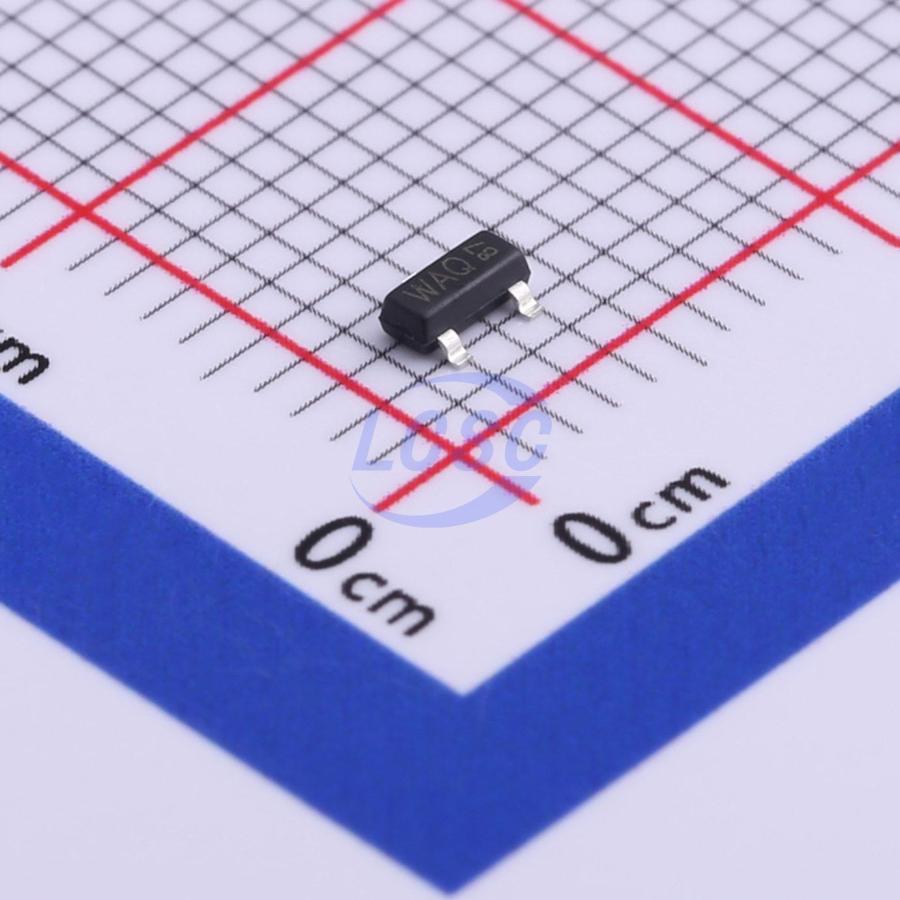

TPESD05LUS3
3A@8/20us 150W@8/20us 6V Unidirectional 5V SOT-23 TVS Diodes
SOT-23RoHSActive
Ultra Low Capacitance ESD Protection
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD05LUS3
- Store part #
- C521941
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,120 in stock
#C521941
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.52 | ₹85.20 |
| 100+ | ₹6.80 | ₹680.00 |
| 300+ | ₹5.93 | ₹1,779.00 |
| 3,000+ | ₹4.70 | ₹14,100.00 |
| 6,000+ | ₹4.18 | ₹25,080.00 |
| 9,000+ | ₹3.92 | ₹35,280.00 |
10 × ₹8.52
₹85.20
excl. GST
₹100.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD05LUS3
₹85.20 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.055 g
Overview
Applications
- USB2.0 and USB3.0
- HDMI 1.3 and HDMI 1.4
- DVI
- Personal Digital Assistants (PDAs)
Key features
- Ultra-Low capacitance (< 1.5pF)
- Low Clamping Voltage
- Working Voltage: 5V
- Low Leakage Current
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
