TECH PUBLICDatasheet (PDF)

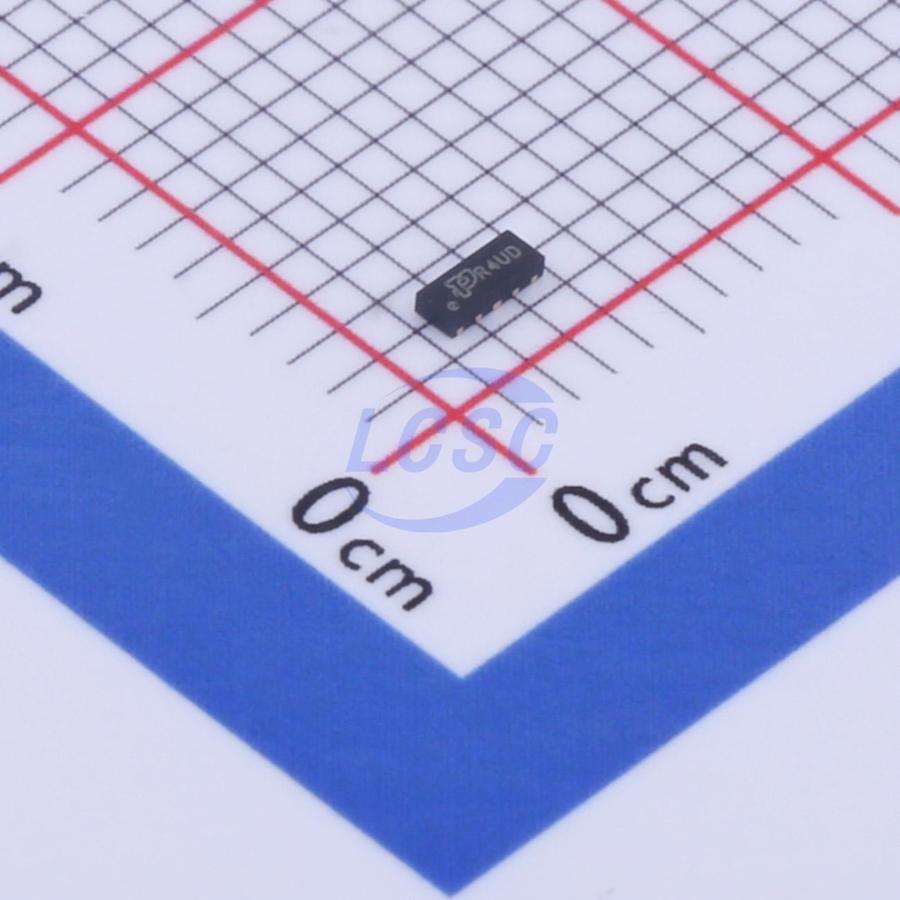

TPESD05R4P
15VC Clamp ESD DIODE DFN2510-10
DFN2510-10RoHSActive
ESD DIODE 5VWM 15VC DFN2510-10
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD05R4P
- Store part #
- C907852
- Package / case
- DFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,730 in stock
#C907852
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.83 | ₹98.30 |
| 100+ | ₹7.91 | ₹791.00 |
| 300+ | ₹6.95 | ₹2,085.00 |
| 3,000+ | ₹5.58 | ₹16,740.00 |
| 6,000+ | ₹5.00 | ₹30,000.00 |
| 9,000+ | ₹4.72 | ₹42,480.00 |
10 × ₹9.83
₹98.30
excl. GST
₹115.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD05R4P
₹98.30 for 10 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4.3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 250W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6.8V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Applications
- High Definition Multimedia Interface (HDMI)
- Digital Visual Interface (DVI)
- Unified Display Interface (UDI)
- MDDI Ports
- PCI Express
- Serial ATA
Key features
- 250 Watts Peak Pulse Power (8/20us)(Vcc-GND)
- Protects two or four I/O lines
- Low capacitance: 0.35 pF typical (I/O to I/O)
- Low operating voltage: 5V
- RoHS Compliant
- IEC61000-4-2 (ESD) ±25kV (air), ±20kV (contact)
- IEC61000-4-4 (EFT) 40A (5/50ηs)
- IEC61000-4-5 (Lightning) 4.3A (8/20μs)
