TECH PUBLICDatasheet (PDF)

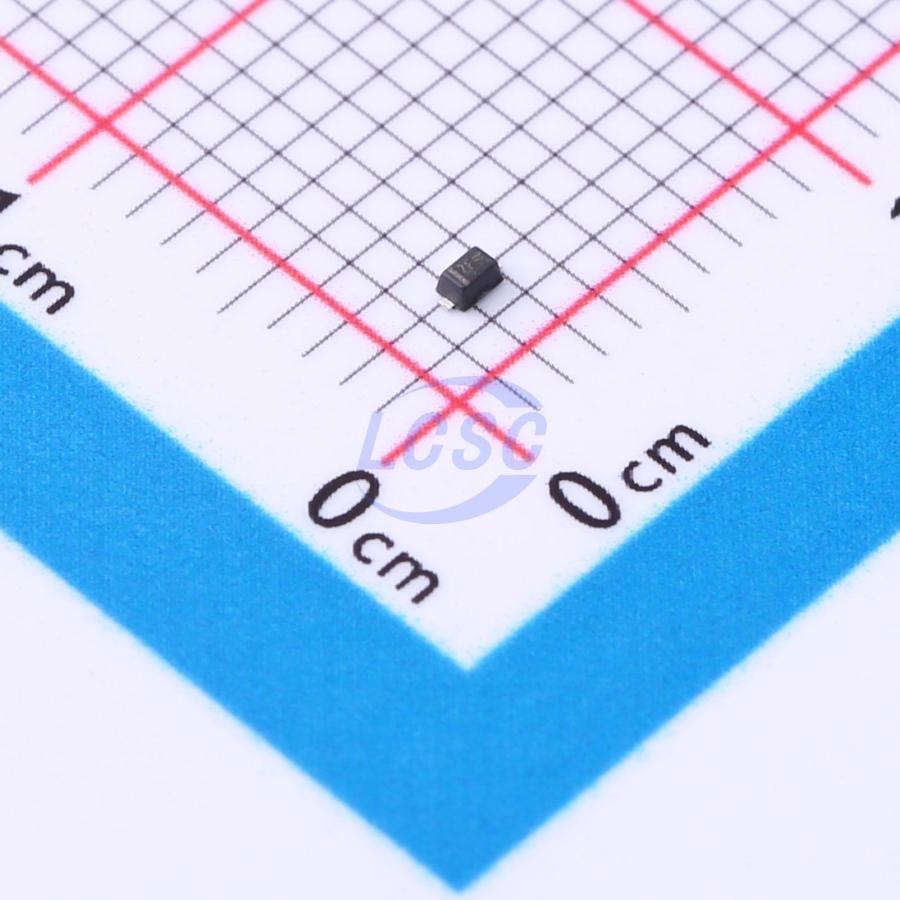

TPESD05V52D-A
9VC 15VC Clamp ESD DIODE SOD-523
SOD-523RoHSActive
ESD DIODE 5VWM 9VC 15VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD05V52D-A
- Store part #
- C2841437
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,050 in stock
#C2841437
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.74 | ₹137.00 |
| 500+ | ₹2.16 | ₹1,080.00 |
| 3,000+ | ₹1.65 | ₹4,950.00 |
| 6,000+ | ₹1.46 | ₹8,760.00 |
| 24,000+ | ₹1.28 | ₹30,720.00 |
| 51,000+ | ₹1.20 | ₹61,200.00 |
50 × ₹2.74
₹137.00
excl. GST
₹161.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD05V52D-A
₹137.00 for 50 + GST
Specifications
- Clamping Voltage
- 15V
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.026 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
- Audio Players
- Keypads, Side Keys, LCD Displays, USB2.0
Key features
- 150 Watts peak pulse power (tp=8/20μs)
- Transient protection for high speed data lines to IEC 61000-4-2 (ESD) ± 30kV (air), ± 30kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns)
- Protects One Power or I/O Port
- Low leakage current
- Low operating and clamping voltages
- Solid-state silicon avalanche technology
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPESD5V0D5#C970024TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 27,150 | ₹2.92 · 27,150 in stock | View |
