TECH PUBLICDatasheet (PDF)

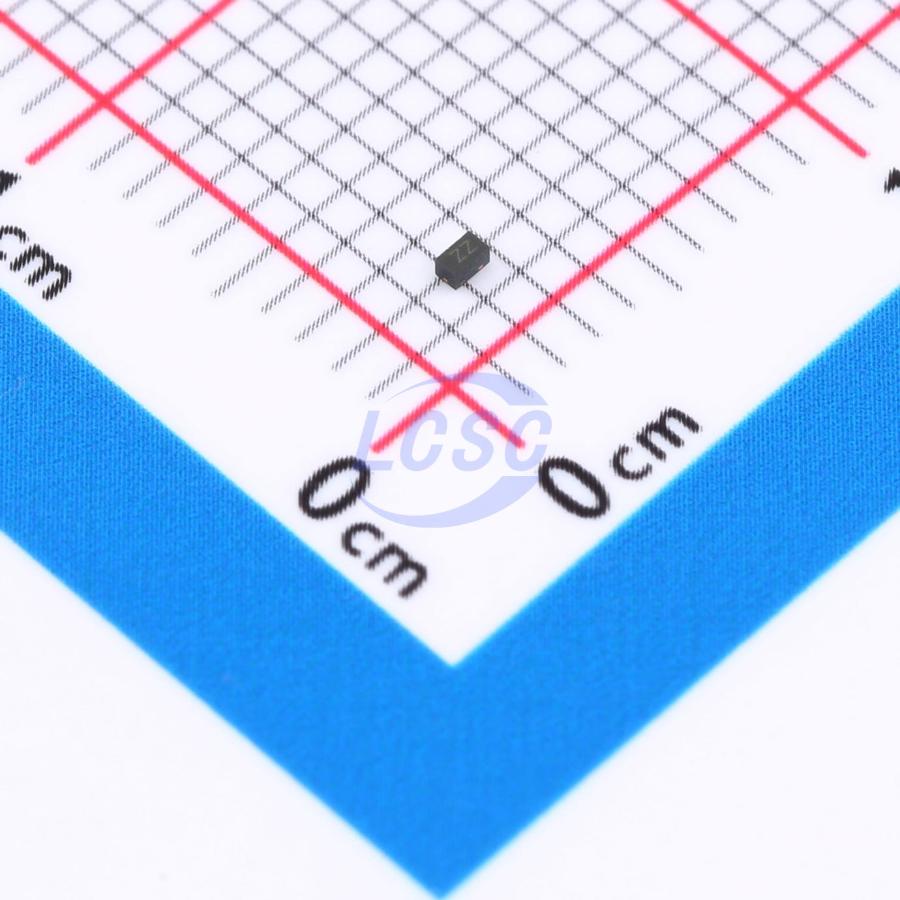

TPESD1521P
28VC Clamp 1A@8/20us Ipp DFN1006-2
DFN1006-2RoHSActive
16VWM 28VC DFN1006-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD1521P
- Store part #
- C521902
- Package / case
- DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C521902
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.63 | ₹86.30 |
| 100+ | ₹6.91 | ₹691.00 |
| 300+ | ₹6.05 | ₹1,815.00 |
| 3,000+ | ₹5.40 | ₹16,200.00 |
| 6,000+ | ₹4.29 | ₹25,740.00 |
| 9,000+ | ₹4.04 | ₹36,360.00 |
10 × ₹8.63
₹86.30
excl. GST
₹101.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD1521P
₹86.30 for 10 + GST
Specifications
- Clamping Voltage
- 28V
- Peak Pulse Current (Ipp)
- 1A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 50W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 18V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 16V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.012 g
Overview
Applications
- USB 2.0 power and data line
- Set-top box and digital TV
- Digital video interface (DVI)
- Notebook Computers
- SIM Ports
- 10/100 Ethernet
Key features
- Ultra-small package (1.0×0.6×0.5mm)
- Ultra low capacitance: 0.35pf typ
- Ultra low operating voltage: 15V
- Low clamping voltage
- Two - pin leadless package
- Epoxy meets UL 94 V-0 flammability rating
- Moisture Sensitivity Level 1
