TECH PUBLICDatasheet (PDF)

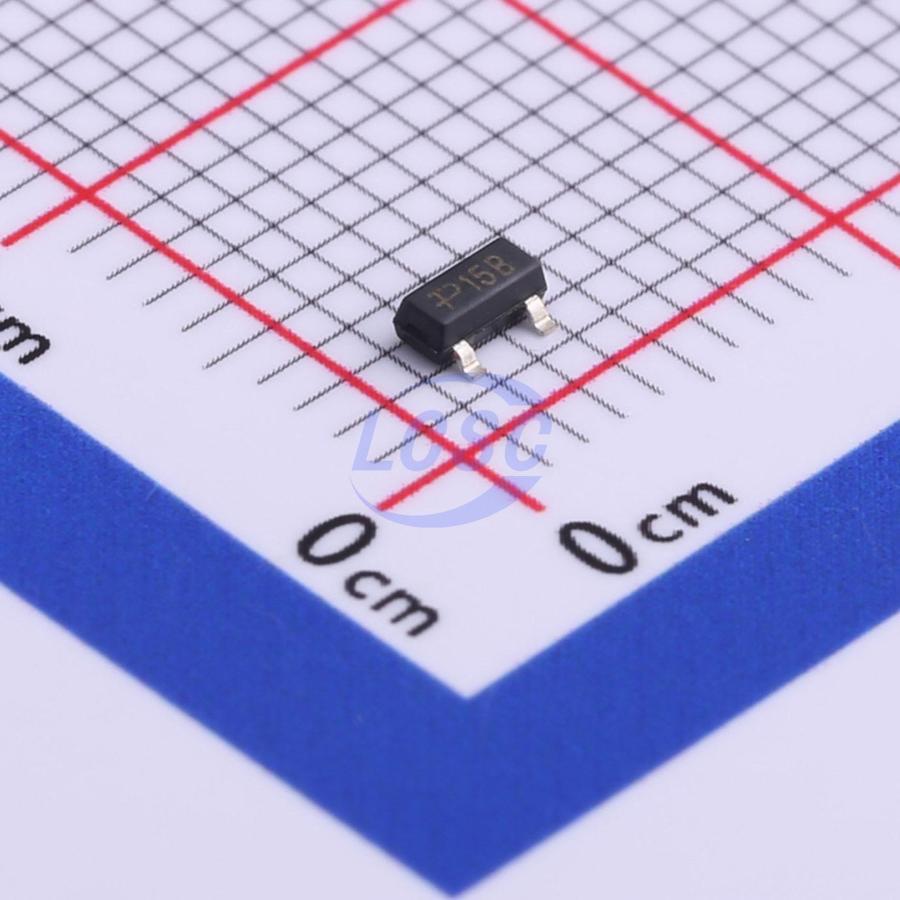

TPESD15BS3
30VC Clamp 8A@8/20us Ipp ESD DIODE SOT-23
SOT-23RoHSActive
ESD DIODE 15VWM 30VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD15BS3
- Store part #
- C521944
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,940 in stock
#C521944
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.59 | ₹65.90 |
| 100+ | ₹5.29 | ₹529.00 |
| 300+ | ₹4.63 | ₹1,389.00 |
| 3,000+ | ₹3.78 | ₹11,340.00 |
| 6,000+ | ₹3.40 | ₹20,400.00 |
| 9,000+ | ₹3.20 | ₹28,800.00 |
10 × ₹6.59
₹65.90
excl. GST
₹77.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD15BS3
₹65.90 for 10 + GST
Specifications
- Clamping Voltage
- 30V
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 250W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 16.7V
- type
- ESD
- Reverse Leakage Current (Ir)
- 10nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.057 g
Overview
Applications
- Cellular Handsets and Accessories
- Notebooks and Handhelds
- Portable Instrumentation
- Set Top Box
- Industrial Controls
Key features
- 250W peak pulse power(8/20μs)
- Protects two bi-directional lines
- Ultra low leakage: nA level
- Operating voltage: 15V
- Low clamping voltage
- Complies with following standards: - IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV - IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
