TECH PUBLICDatasheet (PDF)

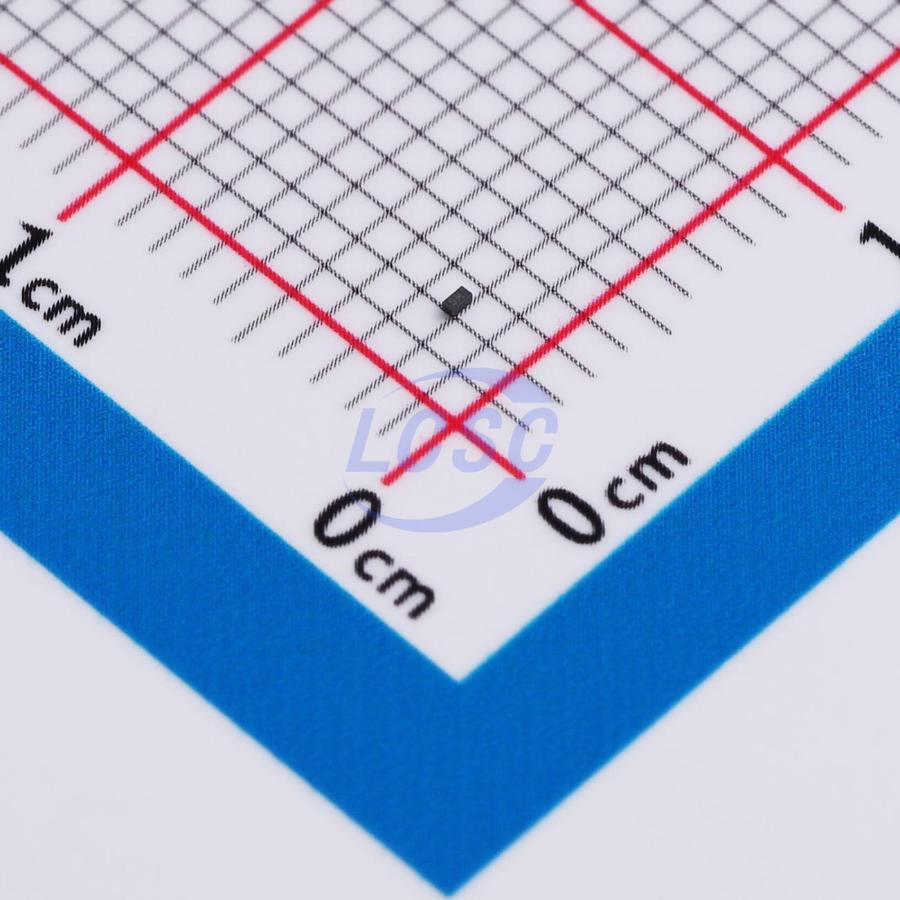

TPESD1V0R1BDSFYL
3.5V 4A@8/20us 14W@8/20us 2V Bidirectional 1V DFN0603-2 TVS Diodes
DFN0603-2RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD1V0R1BDSFYL
- Store part #
- C52098228
- Package / case
- DFN0603-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
960 in stock
#C52098228
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.96 | ₹79.60 |
| 100+ | ₹6.27 | ₹627.00 |
| 300+ | ₹5.41 | ₹1,623.00 |
| 1,000+ | ₹4.78 | ₹4,780.00 |
| 5,000+ | ₹4.27 | ₹21,350.00 |
| 10,000+ | ₹4.01 | ₹40,100.00 |
10 × ₹7.96
₹79.60
excl. GST
₹93.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TPESD1V0R1BDSFYL
₹79.60 for 10 + GST
Specifications
- Clamping Voltage
- 3.5V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 14W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 2V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 1V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.005 g
Overview
Applications
- Mobile phones & accessories
- Personal digital assistants
- Laptops & tablets
- USB Type-C interface
- USB 3.1 / 3.2 interface
Key features
- Low operating voltage: 1V
- Ultra-low capacitance: 0.15pF (typical)
- Ultra-low leakage: nA-level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test, air discharge: ±15kV
- IEC 61000-4-2 (ESD) immunity test, contact discharge: ±12kV
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (surge) 4A (8/20μs)
- 2-pin leadless package
- Lead-free devices
- Response time typically <1ns
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPRClamp1011ZC#C50314379TECH PUBLIC · DFN0603-2 | TECH PUBLIC | DFN0603-2 | 15,275 | ₹11.56 · 15,275 in stock | View |
 | TPD1220-1R0#C51939638TECH PUBLIC · DFN0603-2 | TECH PUBLIC | DFN0603-2 | 160 | ₹15.93 · 160 in stock | View |
 | TPESD0121BLZ#C51939641TECH PUBLIC · DFN0603-2 | TECH PUBLIC | DFN0603-2 | 960 | ₹9.42 · 960 in stock | View |
 | TPS1201-D32#C52098218TECH PUBLIC · DFN0603-2 | TECH PUBLIC | DFN0603-2 | 1,000 | ₹8.02 · 1,000 in stock | View |
 | TPS1101-D32#C52098219TECH PUBLIC · DFN0603-2 | TECH PUBLIC | DFN0603-2 | 990 | ₹7.96 · 990 in stock | View |
